Moxa Technologies EDS-2010-ML Series User Manual

- 16 -

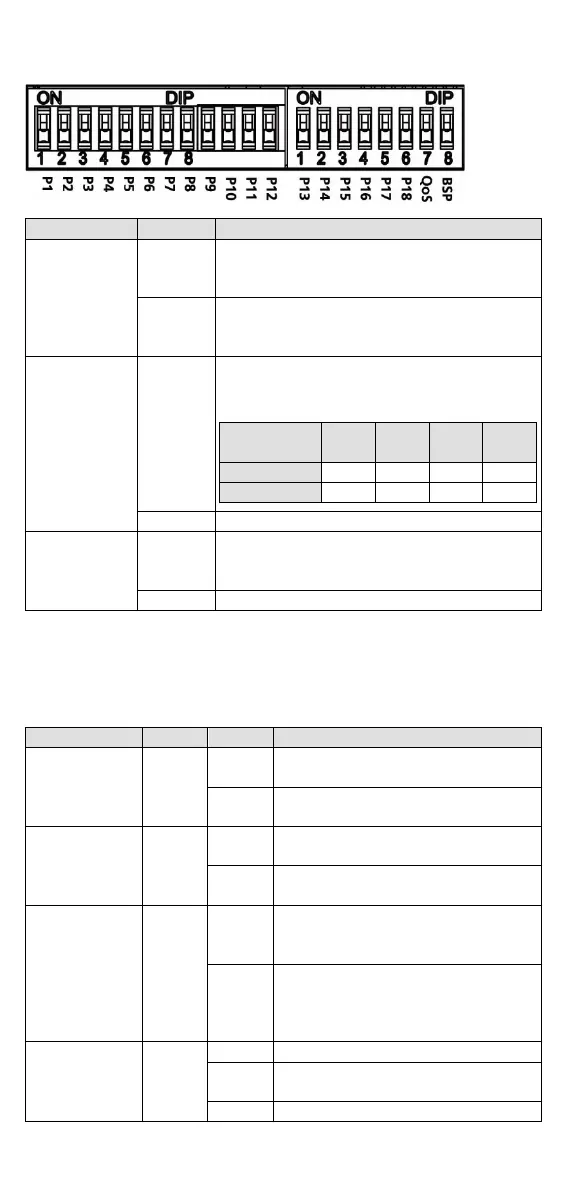

EDS-2018-ML Series DIP Switches
DIP Switch
Setting
Description
Port Alarm
Function
P1 to P16
P17 is G1
P18 is G2
ON
Enables the corresponding PORT Alarm. If
the port’s link fails, the relay will form an
open circuit and the fault LED will light up.
OFF
Disables the corresponding PORT Alarm. The
relay will form a closed circuit and the Fault
LED will never light up.
Quality of
Service (QoS)
ON
Enable the Quality of Service to handle
packet priorities in four WRR queues.
QoS priority mapping matrix in each queue
QoS 3bit
priority
7, 6 5, 4 3, 2 1, 0
Queues
3
2
1
0
WRR
8
4
2
1
OFF
Disable the Quality of Service.
Broadcast
Storm
Protection
(BSP)
ON Enables broadcast storm protection (at a
maximum of 2000 broadcast packets per
second) in the EDS switch for all ports.
OFF
Disables broadcast storm protection.
LED Indicators
The front panel of the Moxa EtherDevice Switch contains several LED
indicators. The function of each LED is described in the table below.
LED
Color
State
Description
PWR1 AMBER
On
Power is being supplied to power
input PWR1.
Off
Power is not being supplied to power
input PWR1.
PWR2 AMBER
On
Power is being supplied to power
input PWR2.
Off
Power is not being supplied to power
input PWR2.
FAULT Red
On
When the corresponding PORT alarm
is enabled, and the port’s link is
inactive.
Off
When the corresponding PORT alarm
is enabled and the port’s link is
active, or when the corresponding
PORT alarm is disabled.
10M/100M/
1000M
Copper Top
LED
Green
On
TP port’s 1000Mbps link is active.
Blinking
Data is being transmitted at
1000Mbps.
Off
TP port’s 1000Mbps link is inactive.
