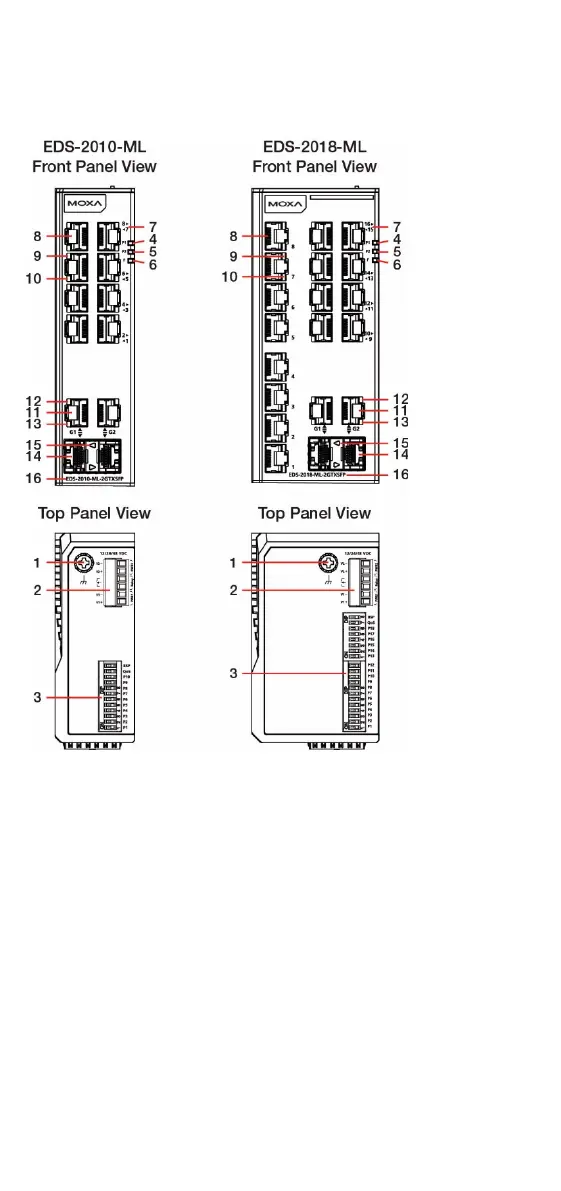

Panel Layout of EDS-2010-ML-2GTXSFP / EDS-
2018-ML-2GTXSFP
1. Grounding screw
2. Terminal block for power input
(PWR1, PWR2) and relay output
3. DIP switch
4. Power input PWR1 LED
5. Power input PWR2 LED
6. Fault LED
7. Port number
8. 10/100 BaseT(X) Port
9. TP port’s 100 Mbps LED
10. TP port’s 10 Mbps LED
11. 10/100/1000 BaseT(X) Port
12. TP port’s 1000 Mbps LED
13. TP port’s 100 Mbps LED
14. 100/1000Base SFP slot
15. SFP port's 100/1000 Mbps LED
16. Model Name
