NPort 5000 Series User Manual

102

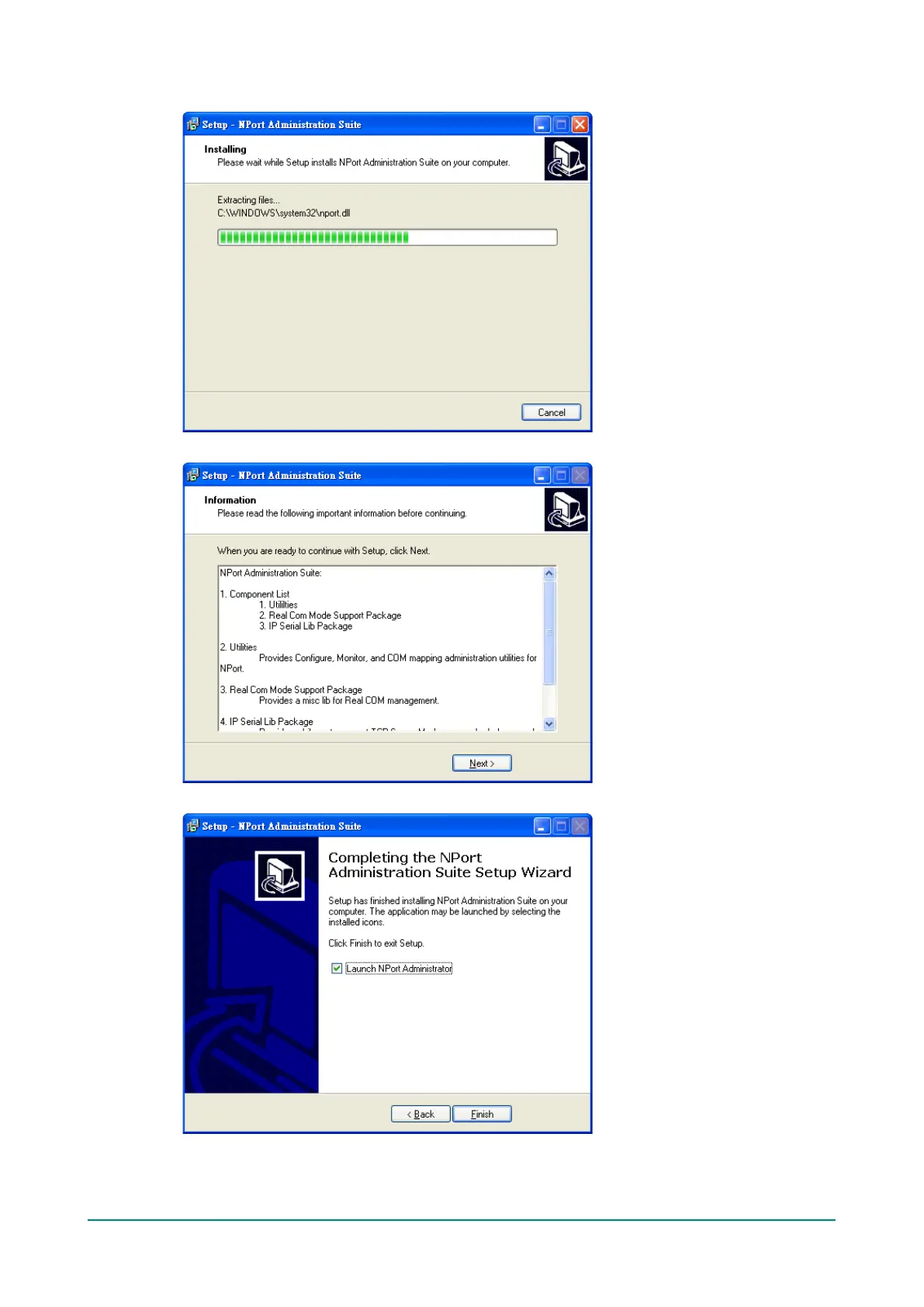

5. The Installing window reports the progress of the installation.

6. Click Next to proceed with the installation.

7. Click Finish to complete the installation of NPort Administration Suite.
