Moxa Technologies NPort 5110A User Manual

NPort 5000 Series User Manual
106
Fixed
The NPort is not password protected, and “Search by IP address” was used to locate it.
Lock Fixed
The NPort is password protected, “Specify by IP address” was used to locate it, and the password has not
yet been entered from within the current Administrator session.
Unlock Fixed
The NPort is password protected, “Specify by IP address” was used to locate it, and the password has been
entered from within the current Administrator session. Henceforth during this Administrator session,
activating various utilities for this NPort will not require re-entering the server password.

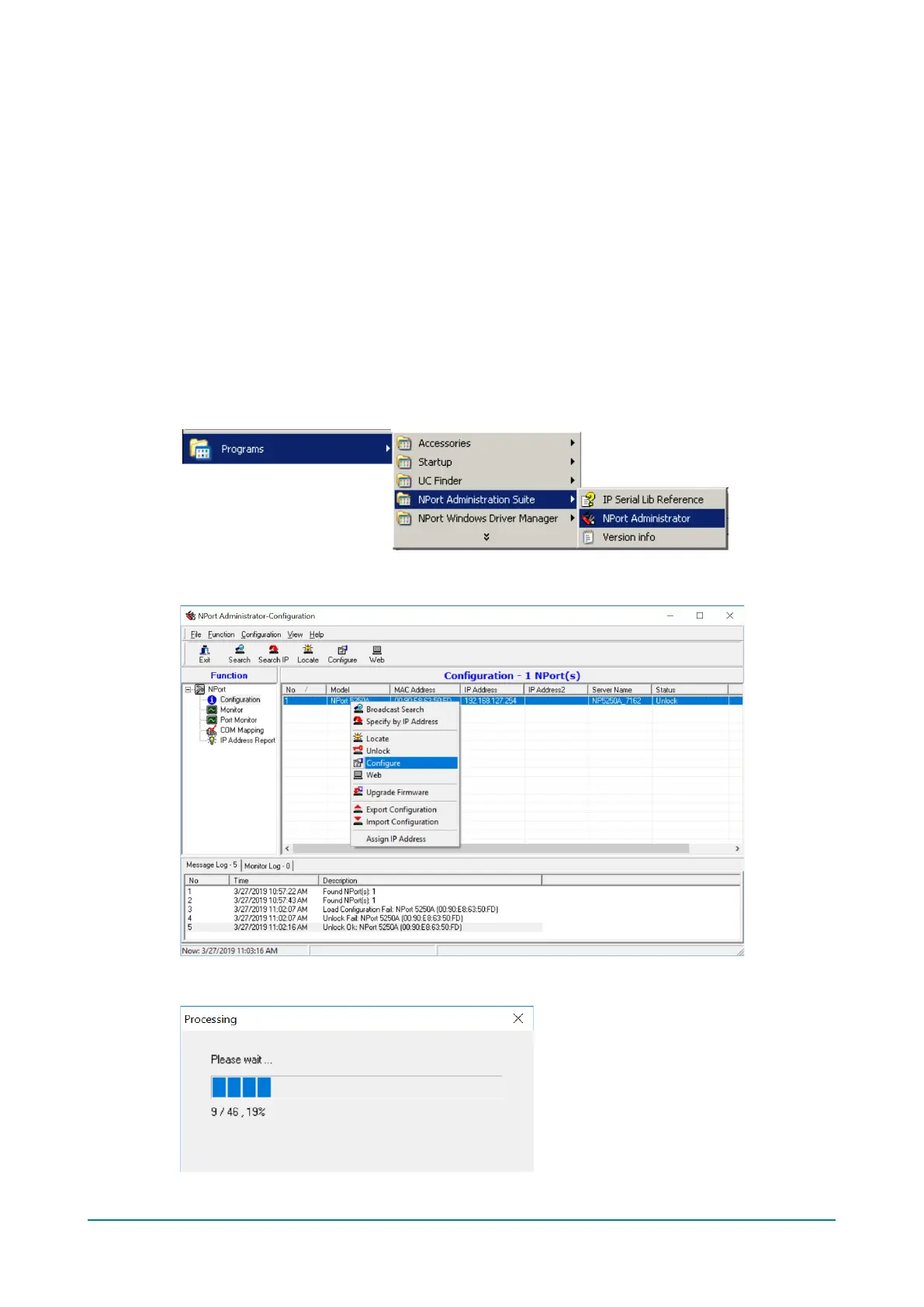

Configuring NPort
In this section, we illustrate how to access the NPort’s configuration utility. You should first make sure that
you can connect over the network from your computer to the NPort.
1. To start NPort Administrator, click Start
 NPort Administration Suite  NPort Administrator.
2. Unlock the NPort you wish to configure if it is password protected. Right click the NPort and select
Configure to start the configuration.
3. The progress bar shows that Administrator is retrieving configuration information from the specific
NPort.

Moxa Technologies NPort 5110A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-232
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
