NPort 5000 Series User Manual

173

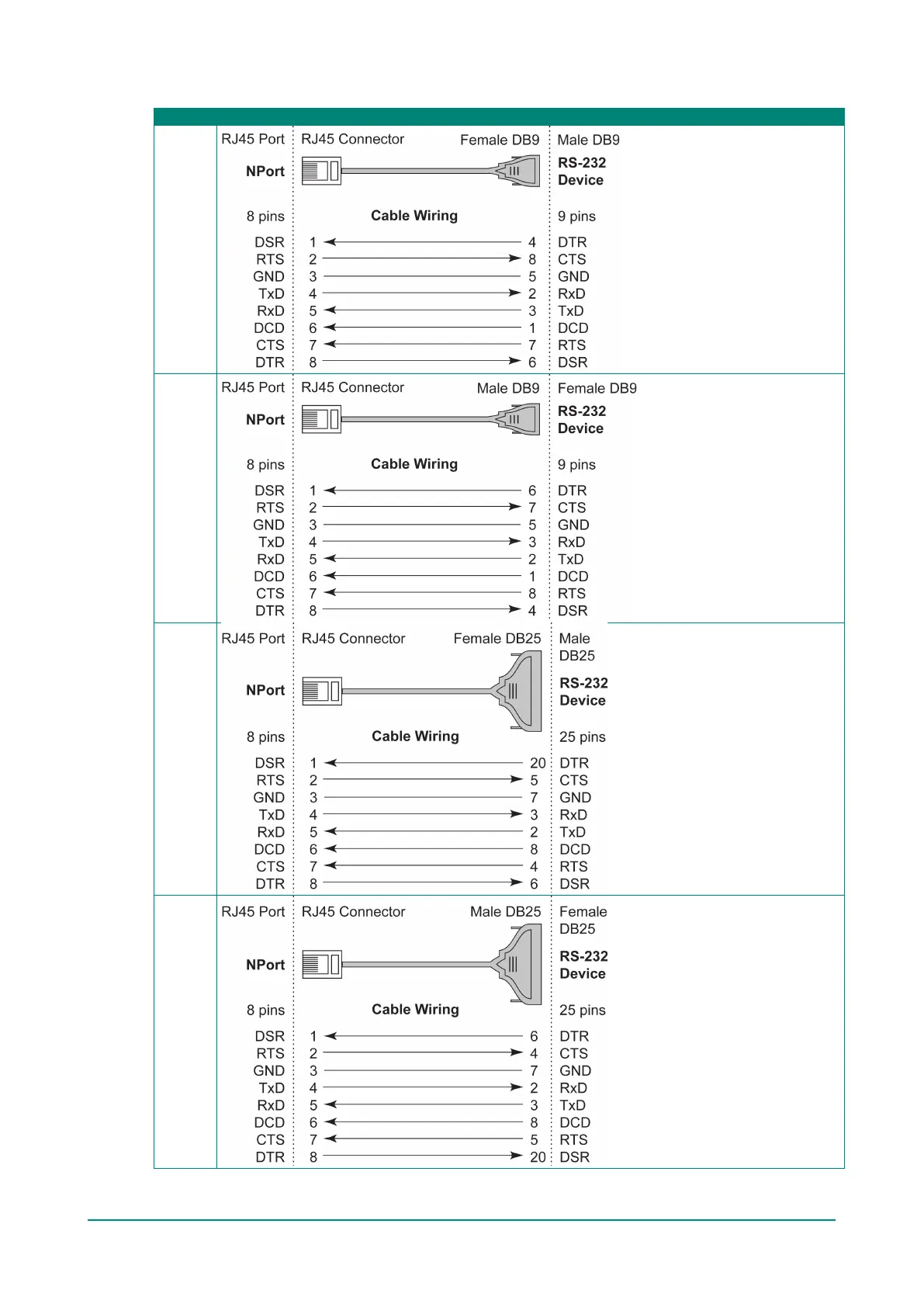

NPort 5210, NPort 5610/5650 (RS-232)

pin RJ45 to DB9 Female

(RS-

232)

-pin

RJ45 to DB9 Male

(RS-232)

pin RJ45 to DB25 Female

(RS-232)

pin RJ45 to DB25 Male

(RS-232)
