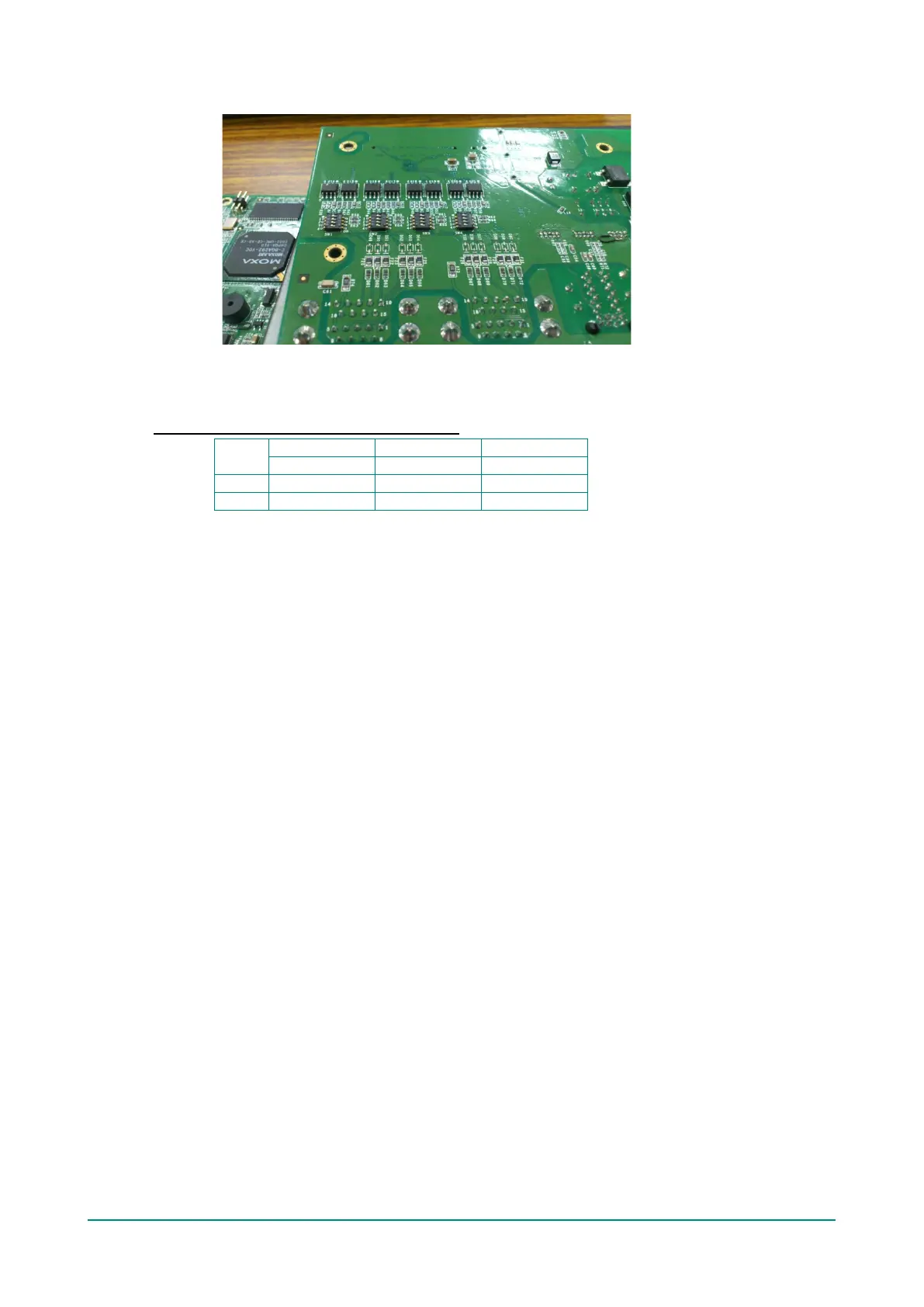

Step 4: Pull-high/low DIP switches are on the backside of the board
From right to left, the DIP switches are used for port 1 to port 4. SW1 is used for port 1, SW2 for port 2,
SW3 for port 3, and SW4 for port 4. The functions of DIP1, DIP2, and DIP3 are shown in the following table
(DIP4 is reserved).
Pull-high/low Resistors for the RS-485 Port
Default
SW
DIP1
DIP2
DIP3
Pull-high
Pull-low
Terminator
ON
1 kΩ
1 kΩ
120 kΩ
OFF
150 kΩ
150 kΩ
–

Moxa Technologies NPort 5110A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-232
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
