Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
124

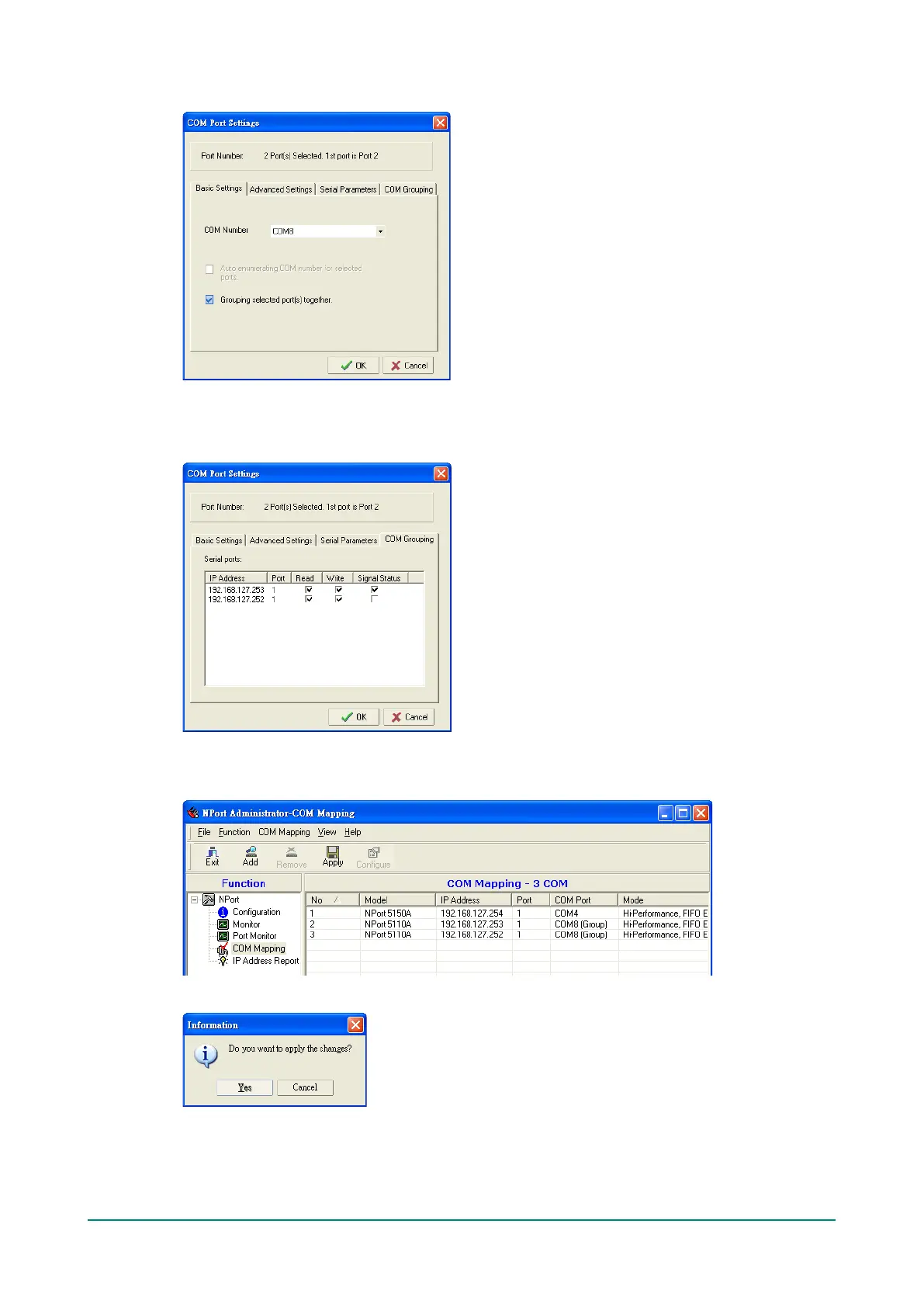

3. Select the Grouping selected port(s) together checkbox.
4. On the COM Grouping page, you can set “Read” and “Write” permissions for every serial port. It is
necessary to set Signal Status in order to control the data transmission with specified control signals
(e.g., DTR/RTS). You can assign one serial port whose signals will be taken into account by the COM
Group.
5. Click OK, and confirm that the serial ports that were assigned. The COM Port column confirms that your
selected ports are labeled as part of a “Group.” You will be able to view the serial ports that were
assigned to and removed from the Group. Click Apply to apply the settings.
6. Finally, click Yes to confirm.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
