Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
103
Configuration

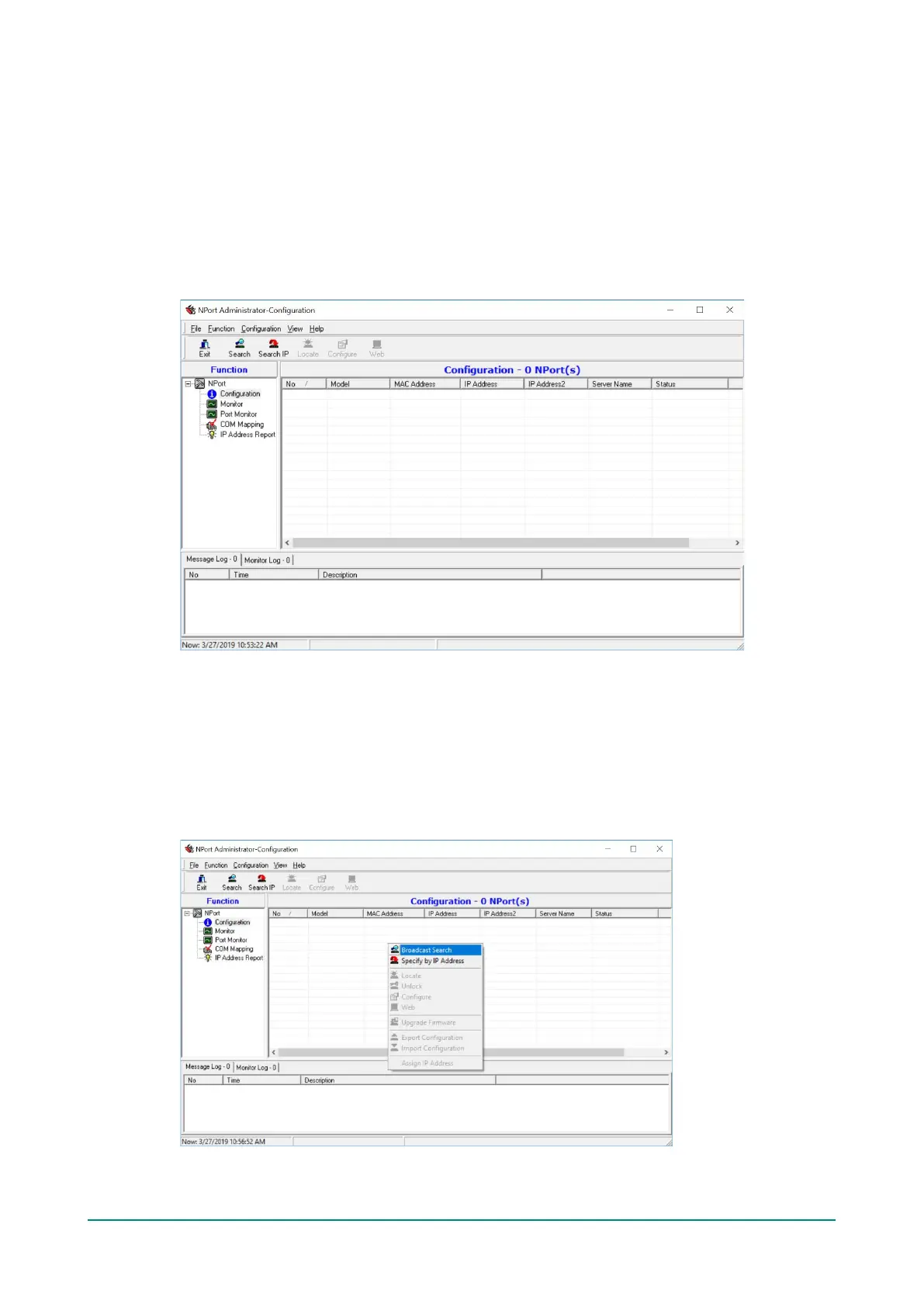

The Administrator-Configuration window is divided into four parts.
• The top section contains the function list and online help area. (Windows NT does not support this .chm
file format.)
• The five Administrator function groups are listed in the left section.
• A list of NPort serial device servers, each of which can be selected to process user requirements, is
displayed in the right section.
• The activity Log, which displays messages that record the user’s processing history, is shown in the
bottom section.
Broadcast Search
The Broadcast Search function is used to locate all NPort units that are connected to the same LAN as
your computer. Since the Broadcast Search function searches by MAC address and not IP address, all NPort
units connected to the LAN will be located, regardless of whether or not they are part of the same subnet as
the host.
1. Position the cursor in the right middle section of the Administrator window and then click right-click,
or click the Search button on the toolbar.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
