Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
24
Quick Setup (excluding the NPort 5100, 5200, and IA5000
Series)
Quick Setup streamlines configuration of your NPort into three basic and quick steps that cover the most
commonly-used settings. While in Quick Setup, you may click the Back button at any time to return to the
previous step, or click the Cancel button to reverse all settings. For more detailed settings, refer to the
Basic Settings, Network Settings, Serial Settings, and Operating Settings sections later in this
chapter

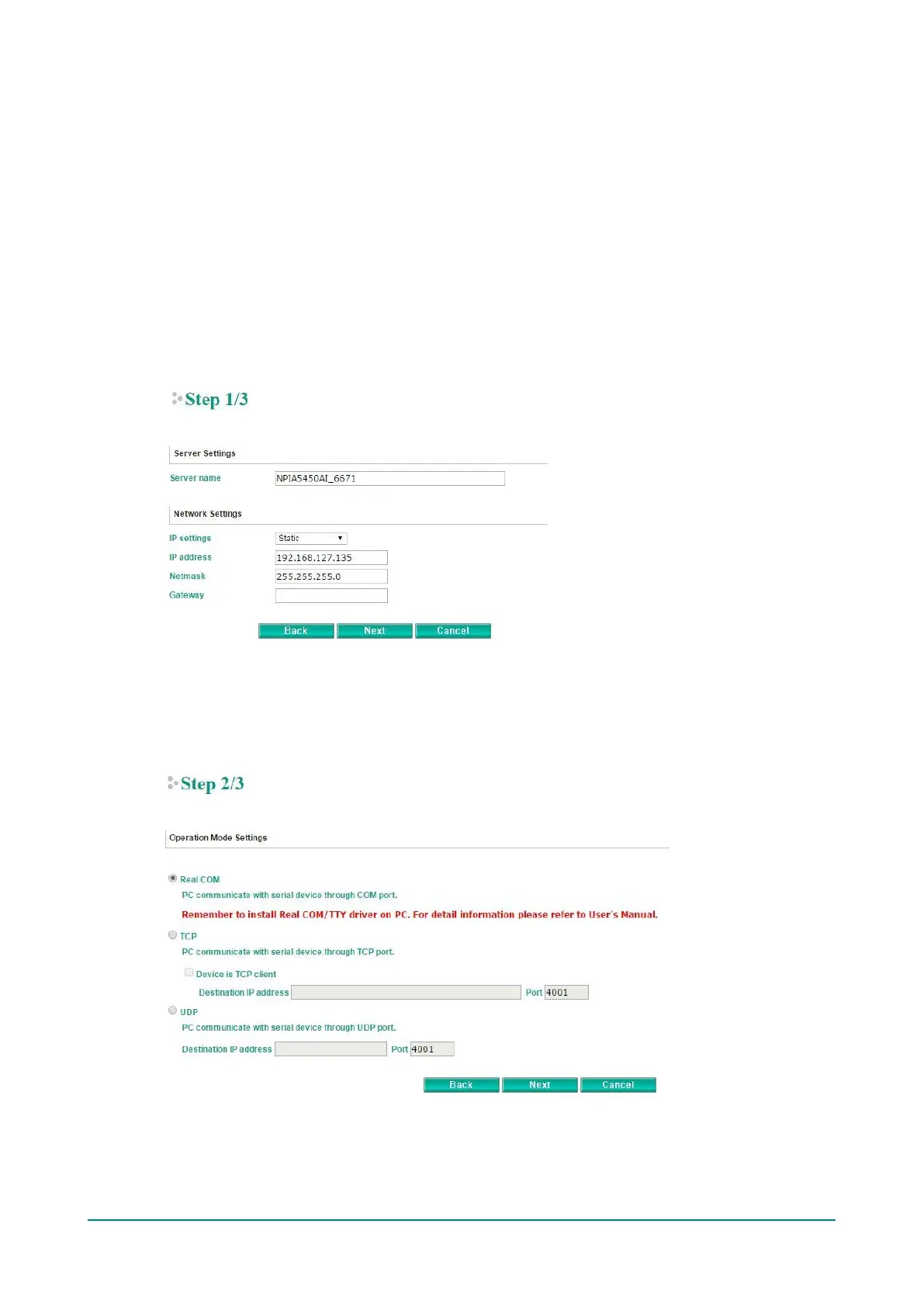

Step 1/3
In Step 1/3, you must assign a valid IP address to the NPort before it will work in your network
environment. Your network system administrator should provide you with an IP address and related settings
for your network. In addition, the server name field is a useful way to specify the location or application of
different NPort units.
Step 2/3
In Step 2/3, you must specify which operation mode you will use. If your operation mode is not Real COM,
TCP Server, TCP Client, or UDP mode, click Cancel, return to the main menu, and choose Operating
Settings to select the correct settings.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
