NPort 5000 Series User Manual
169

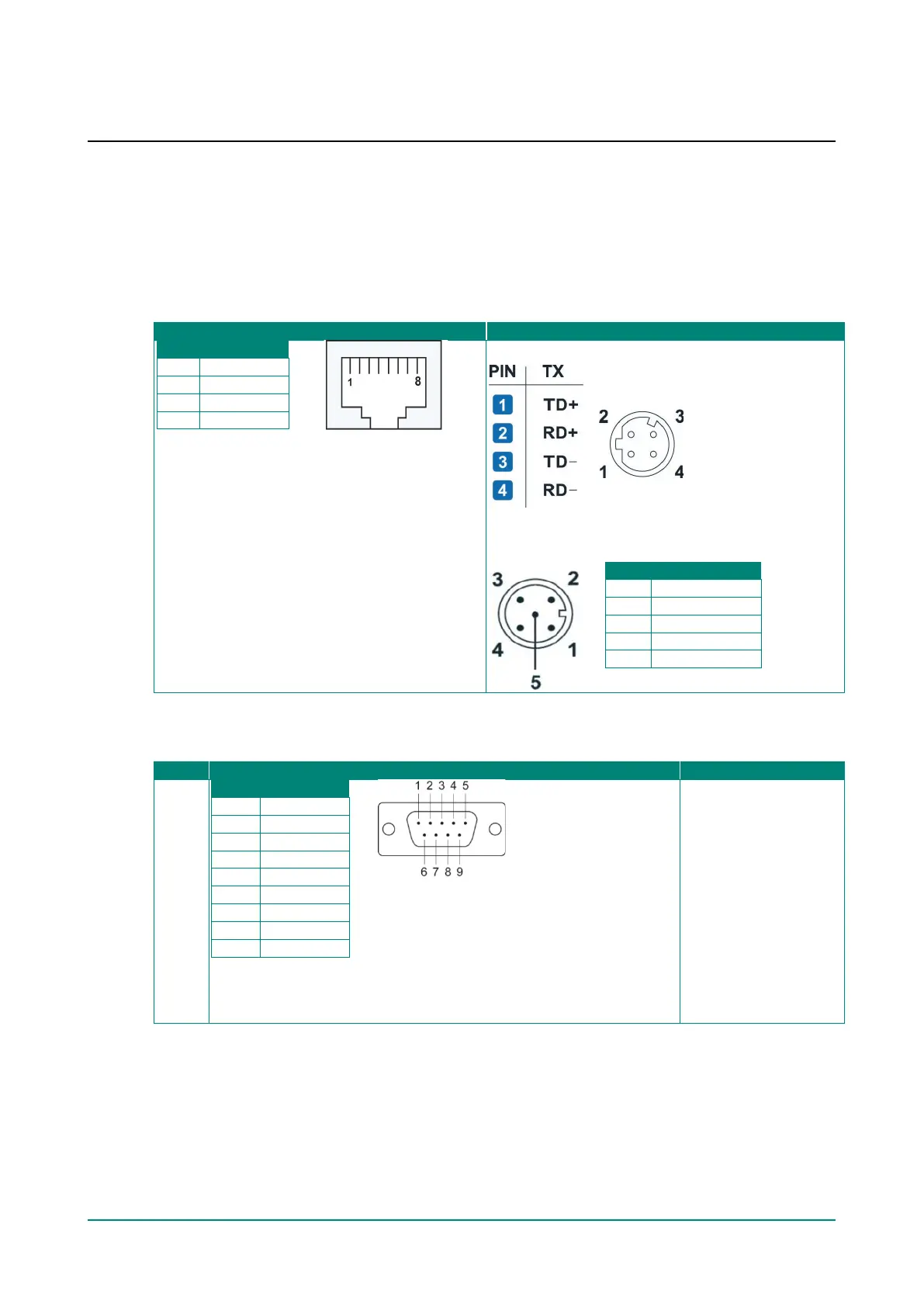

A. Pinouts and Cable Wiring
Port Pinout Diagrams
Ethernet Port Pinouts
Ethernet RJ45
Ethernet M12 (For NPort 5000AI-M12 only)
Pin
Signal
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Ethernet M12:
Housing: shield
Power M12:
PIN
Description
1
Input V+
2
Not assigned
3
Input V-
4
Not assigned
5
Function ground
Serial Port Pinouts
Pin Assignment
Applicable Products
DB9 Male RS
-
232 Port Pinouts
Pin
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
–
NPort 5110, NPort 5150,
NPort 5110A, NPort
5150A, NPort P5150A,
NPort_5000AI-M12,
NPort 5210A, NPort
5250A, NPort 5410,
NPort 5410/5450/5450I,
NPort 5610-8-DT, 5650-
8-DT, 5650I-8-DT, 5610-
8-DTL/DTL-T, 5650-8-
DTL/DTL-T, and
5650I-8-DTL/DTL-T,
NPort IA5150/5250
NPort IA5150A/5250A

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
