NPort 5000 Series User Manual
125

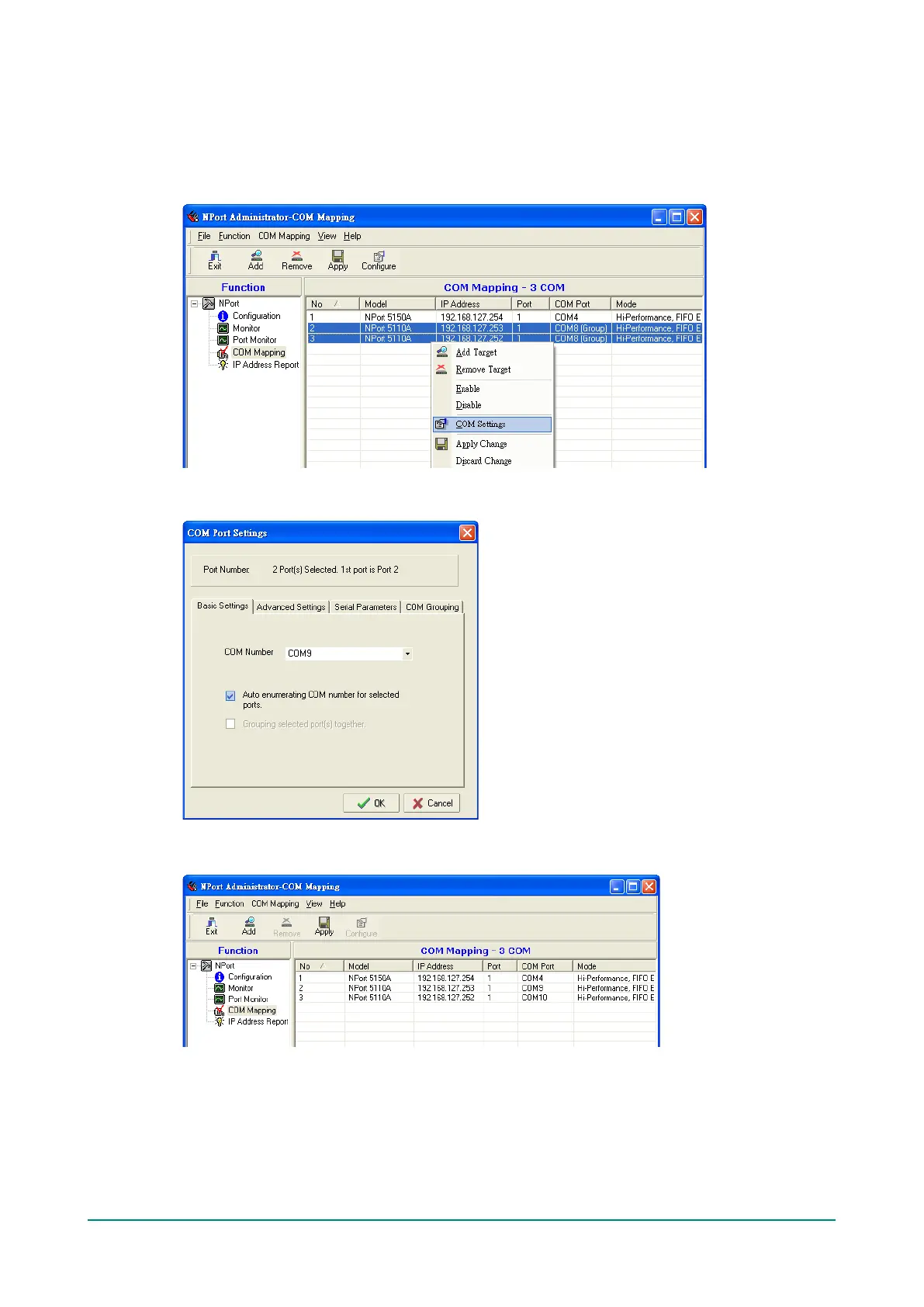

Deleting a COM Group
Follow the steps below to delete a COM Group and then auto-assign COM numbers for each port in the
Group:
1. Select all serial ports in the Group you are deleting and then right-click to select COM Settings.
2. Select a COM number for this COM group and check the Auto enumerating COM number for
selected ports to use the COM number you select as the first starting COM number, and then click OK.
3. You will be able to view the serial ports that were assigned to and removed from the Group. Click Apply
to apply the settings.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
