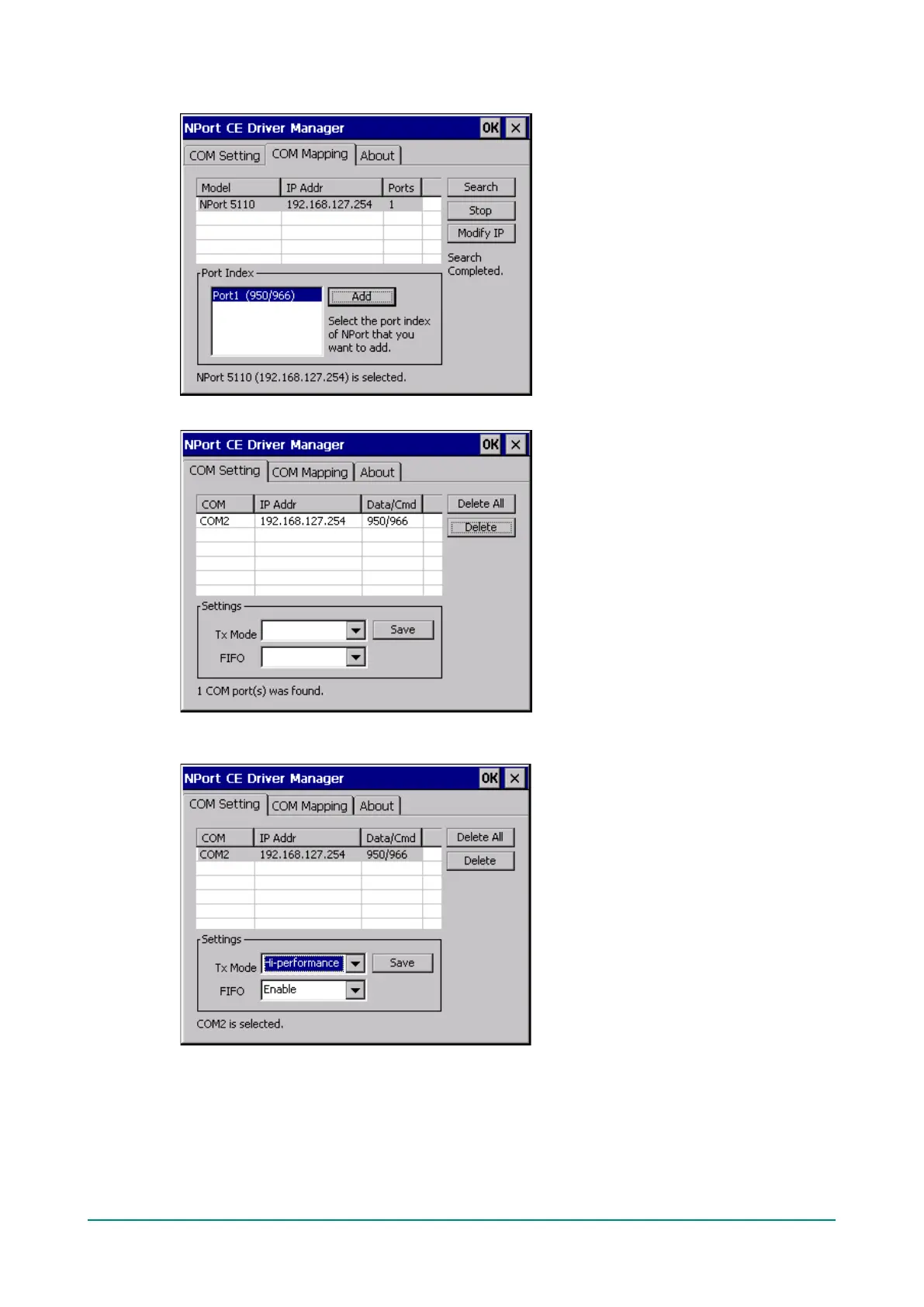

4. Select the port(s) at the Port Index and then click on the “Add” button to map to the COM Port(s).
5. Return to the COM Setting page. You should be able to see the newly mapped COM Port(s).
6. To configure the settings for a particular COM Port, select the row of the desired port, and then modify
the setting in the “Settings” panel, as shown below.
Tx Mode
“Hi-Performance” is the default for Tx mode. After the driver sends data to the NPort server, the driver
immediately issues a “Tx Empty” response to the program. Under “Classical mode,” the driver will not
send the “Tx Empty” response until after confirmation is received from the NPort server’s serial port.
This causes lower throughput. Classical mode is recommended if you want to ensure that all data is sent
out before further processing.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
