NPort 5000 Series User Manual
183

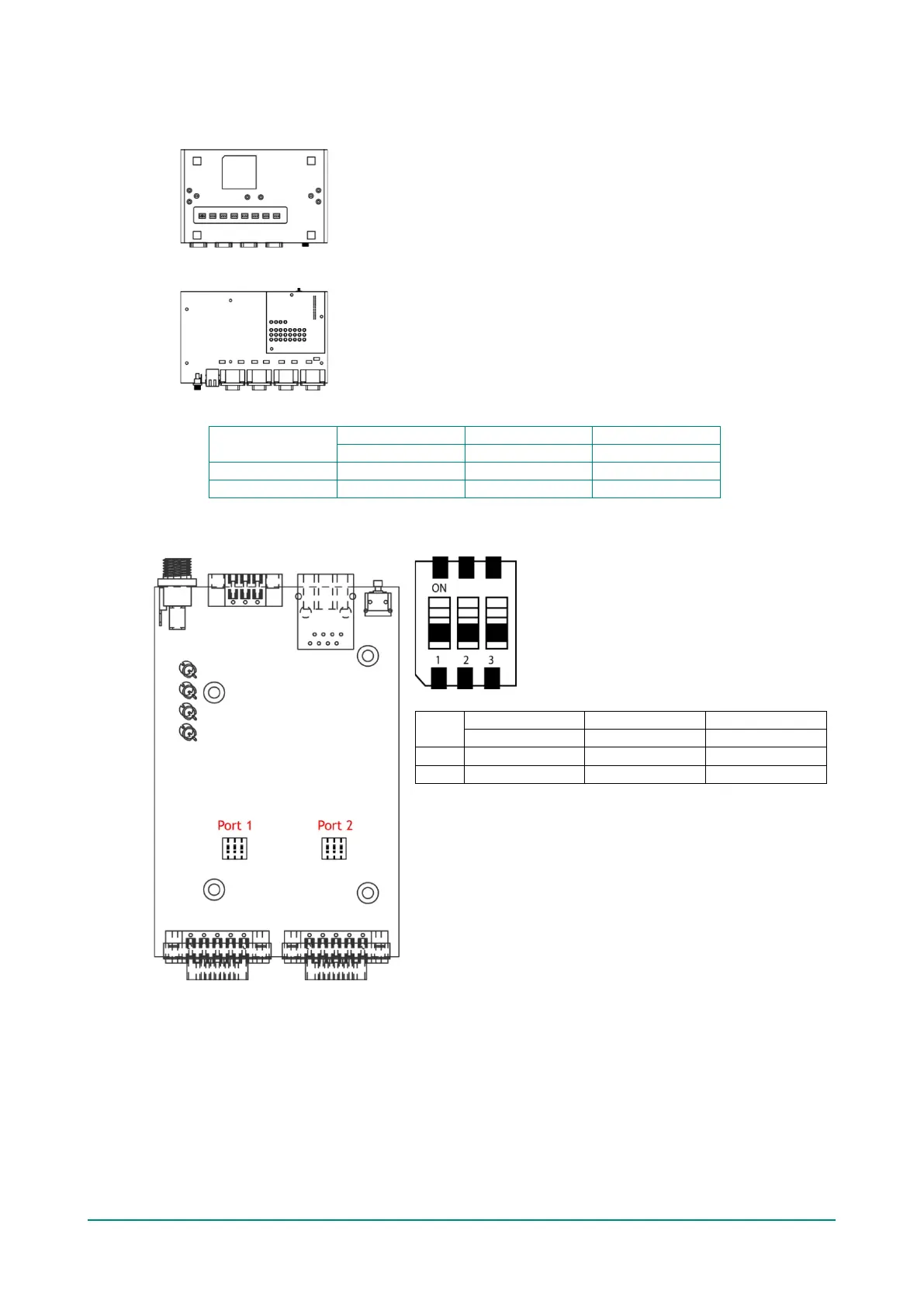

NPort 5650-8-DT/DTL Series (DIP Switches)
• NPort 5650-8-DT: Use the DIP switches on the bottom panel to configure each device port’s pull
high/low resistors. You will need to unscrew the DIP switch cover to access the DIP switches.
• NPort 5650-8-DTL: Remove the top cover to access the DIP switches used to configure each device
port’s pull high/low resistors (note that SW4 is reserved for future use).
The pull high/low resistor values for each device port are set as follows:
Default
SW
1
2
3
Pull High
Pull Low
Terminator
ON
1 KW
1 KW
120 W
OFF
150 KW
150 KW
–
NPort 5230A/5250A (DIP Switches)
SW
1
2
3
Pull-high resistor
Pull-low resistor
Terminator
ON
1 KΩ
1 KΩ
120 Ω
OFF
150 KΩ*
150 KΩ*
–*
* Default

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
