NPort 5000 Series User Manual
19

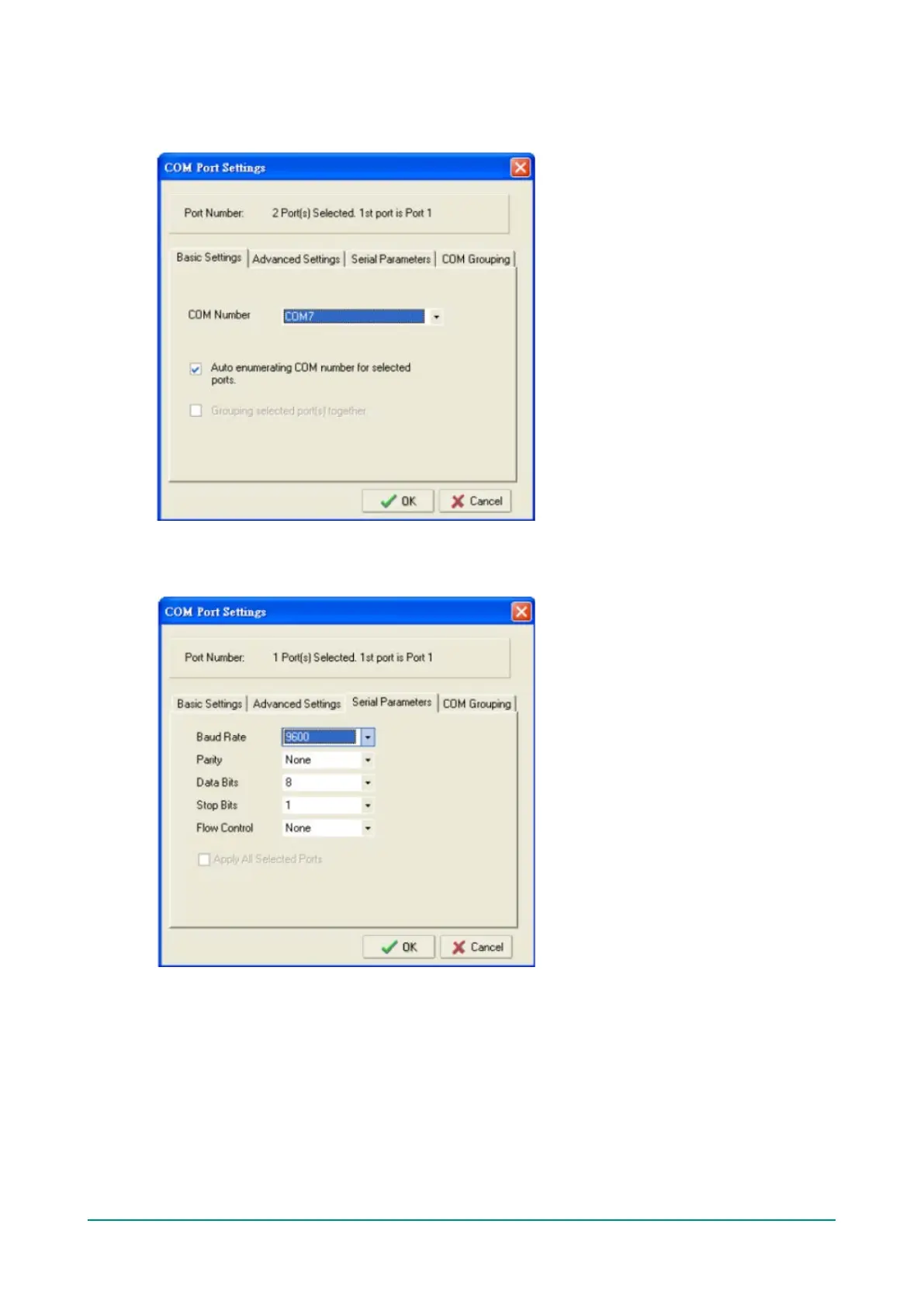

On the Basic Settings screen, select the COM port number that will be mapped to the device port. You can
map multiple COM ports at the same time by selecting the Auto Enumerating check box to number the
COM ports automatically.
On the Serial Parameters screen, adjust the settings to match your device. These settings, which are only
used for serial printers, must also match the settings on the device port. Click OK when you are satisfied
with your changes.

Table of Contents

Other manuals for Moxa Technologies NPort 5210A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Moxa Technologies NPort 5210A and is the answer not in the manual?

Moxa Technologies NPort 5210A Specifications

General IconGeneral
Baud rate230.4 Kbit/s
Data bits5, 6, 7, 8
Stop bits1, 1.5, 2
CertificationCE, FCC
RS-232 signalsCTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control supportYes
Serial interface typeRS-232
Serial ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Mean time between failures (MTBF)134850 h
Product colorBlack, Blue
Housing materialMetal
Input voltage12 - 48 V
Power consumption325 mA
Storage temperature (T-T)-40 - 75 °C
Maximum operating altitude2000 m
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 95 %
Supported network protocolsICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP
Weight and Dimensions IconWeight and Dimensions
Weight340 g
Dimensions (WxDxH)90 x 100.4 x 22 mm
