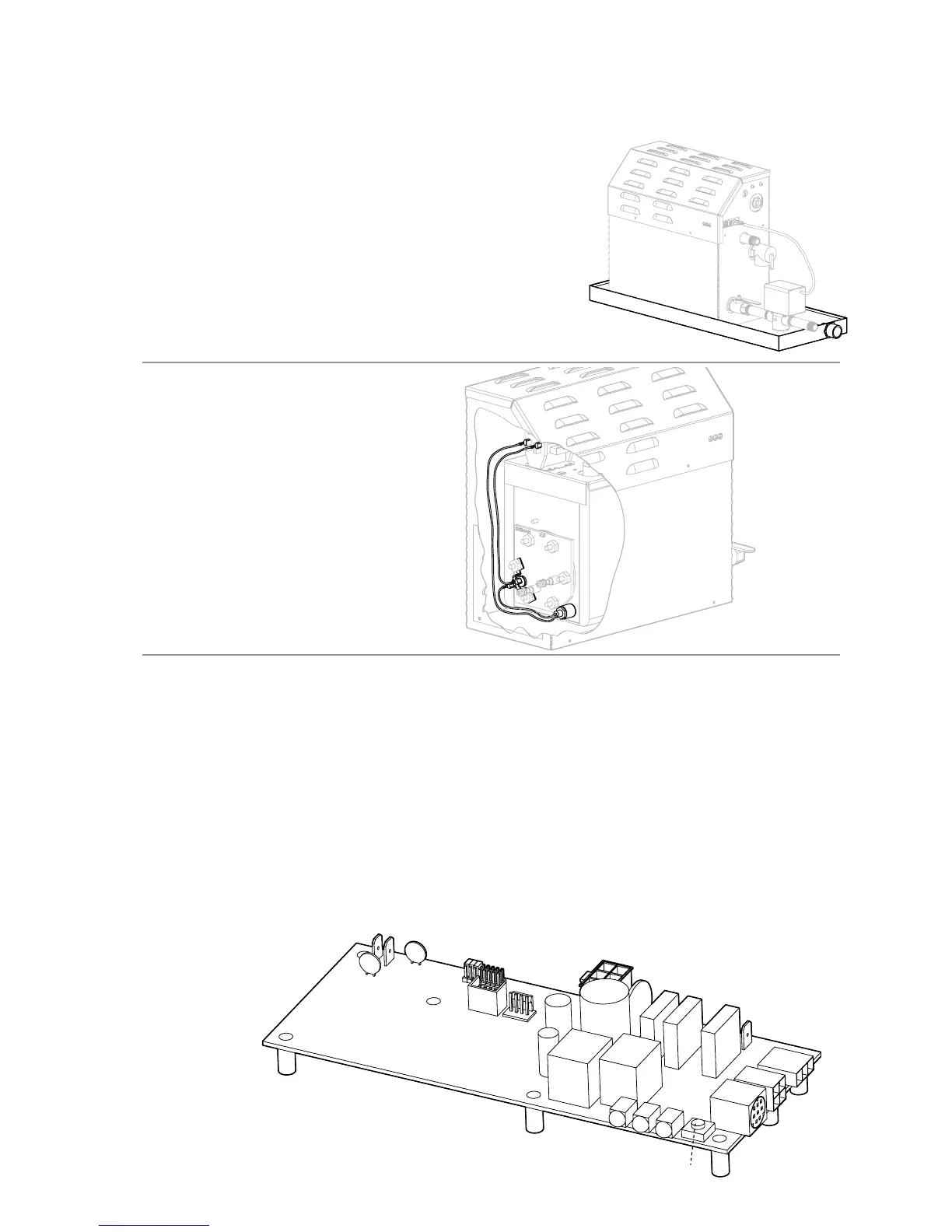

OPTIONAL DRAIN PAN
M
r. Steam strongly recommends the use of a drain pan in the unlikely
event of a plumbing leak.
Locate the drain pan on a solid level surface and place the steam generator
inside the drain pan. Insure the steam generator is level (see page
4
for
locating the steam generator).
All plumbing shall be performed by a qualified licensed plumber and in
accordance with applicable national and local codes. Check local plumbing
code for receptor, trap and vent requirements. Drain pans drain by gravity.
The drain pan is equipped with an integral female
3
⁄4" NPT fitting.
OPTIONAL EXPRESS STEAM
(only available factory installed)
Suitable for all MS Models. Express steam is
equipped with a low power heating element and
thermostat to keep the water in the tank warm
enough to bring up steam quicker. All express
steam components and wiring are installed at the
factory. No additional wiring or plumbing is
required by installers.
LIQUID LEVEL CONTROL BOARD - Explanation of LED Indicators
_________________________________________________________________________________________________
GREEN LED is ON when there is 208/240 Volt incoming power connected,
24 Volt transformer secondary output and on-board 5 Volt DC control power are present.
_________________________________________________________________________________________________
YELLOW Water level indicator–LED is OFF when no water is detected (for more that 5 seconds). ON when
water level is satisfactory. For units with AutoFlush, if more than five hours have elapsed since
last usage and this LED is ON it is indicative of an AutoFlush or water level probe circuit malfunction.
_________________________________________________________________________________________________
RED Contactor relay indicator–LED is ON when relay is closed and sending 24 Volts to the
contactor coil. (This LED comes ON if the generator is ON.)
_________________________________________________________________________________________________
FORCE ON Press this button to operate the generator. This button is for trouble shooting only and will operate
TEST BUTTON if a control is connected or not. Pressing the button again will shut the generator OFF. The test button
will only allow the generator to operate for 10 minutes.
Liquid Level Control Board
PN 103975
(shown without wiring)
mr
.
steam
®
steamtherapy
®
Installation, Operation & Maintenance Manual
_____________________________________________________________________
installer
14
R
E
D
(
Heater
)
Y
E
LLO
W
(
W
ater Lev
el)
GR
E
E
N
(
P
o
wer)
Force On
Test Button
