INSTALLING THE REMOTE TEMPERATURE PROBE
for eTEMPO
®
& eTEMPO/Plus
®
Controls
(PN: MSTS)
The Remote Temperature Probe is required when the eTEMPO or
eTEMPO/PLUS Controls are installed outside the steam room.
The Remote Temperature Probe (P/N MSTS) is
for use with eTEMPO and eTEMPO/PLUS Controls only. Do not use any
other controls. Do not use any other temperature probe with the eTempo
and eTEMPO/PLUS controls. Noncompatible products may result in an
inoperative control and a hazardous condition.
Install the eTEMPO or eTEMPO/PLUS controls
according to the installation instructions on pages 17-19. Failure to
do so may result in an inoperative control and a hazardous condition.
1. Determine the location of the Remote Temperature Probe:
The Remote Temperature Probe must be installed:
a. On a vertical surface
b. 4-5 feet above the floor
c. Locate the MSTS Temperature Sensor in a
location representative of the desired
steambathing temperatures. Do not
locate the MSTS above or near the
steam head or direct steam emissions.
The probe has an integral 30' cable. Insure
that the probe and/or steam generator are
located accordingly.

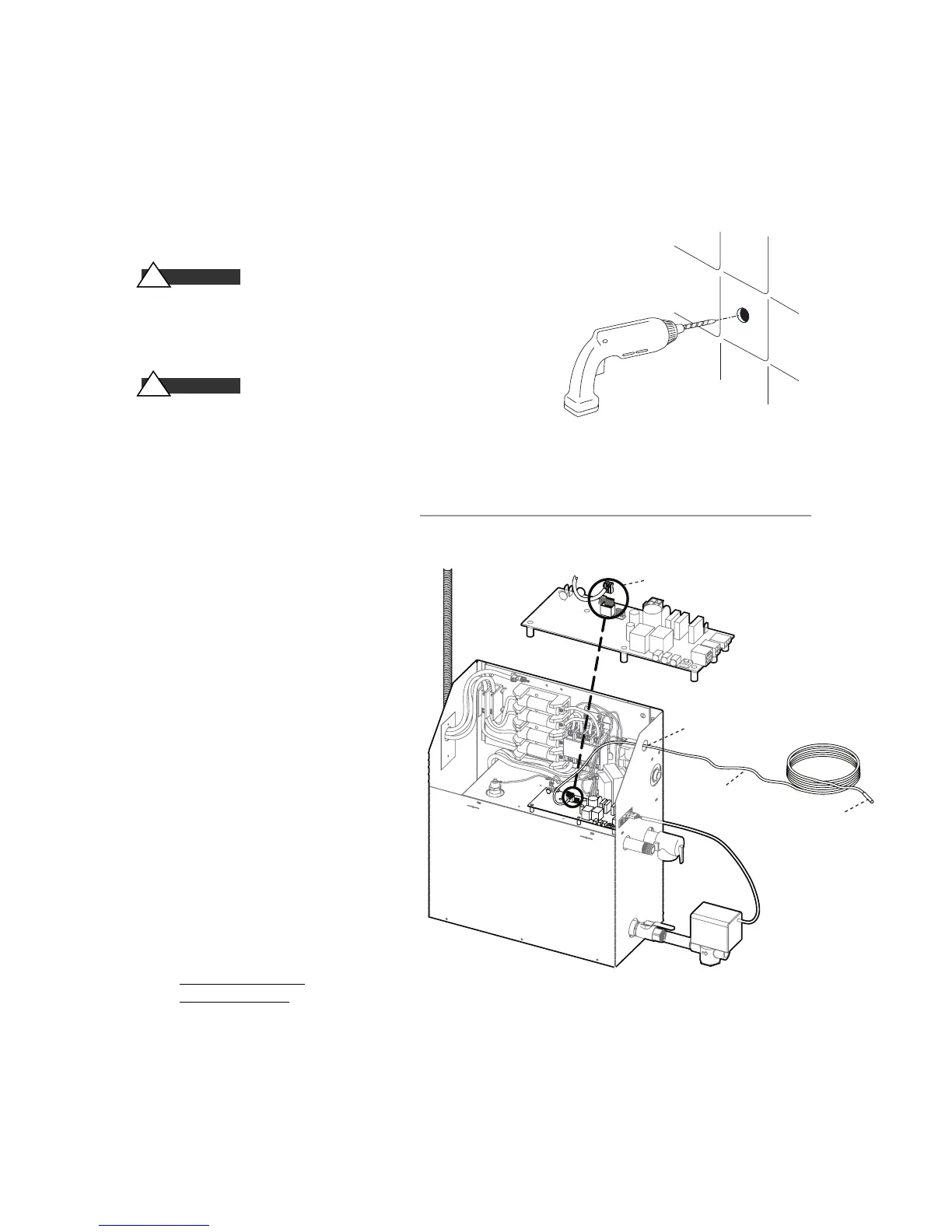

2. Drill a 5/16 inch diameter hole in the wall
as shown in Diagram 1. Do not oversize or
undersize the hole. Clean area thoroughly.
3. Remove the knock-out from the steam gen-
erator jacket as shown in Diagram 2.
4. Insert the remote temperature probe cable
through the knock-out and connect to the
connector on the steam generator printed
circuit board marked EXT TEMP as shown
in Diagram 2.
NOTE: FOR ILLUSTRATIVE
PURPOSES ONLY.
DRAWING NOT TO SCALE
!
CAUTION
!
CAUTION
Mr.Steam
Steam Generator
(shown with cover removed
and NOT installed)
Temperature
Probe Cable
(30 feet)
Temperature
Probe Connection
Knock-Out
Temperature
Sensor Probe
DIAGRAM 1
DIAGRAM 2
mr
.
steam
®
steamtherapy
®
eTempo
®
Controls
______________________________________________________________________
installer
20
