INSTALLING THE REMOTE TEMPERATURE PROBE
(cont.)
5. Route the end of the temperature probe cable with the temperature
probe through the wall into the steam room as shown in Diagram 3.
IMPORTANT NOTE: Do not strain, staple, pinch or otherwise damage
the probe cable.

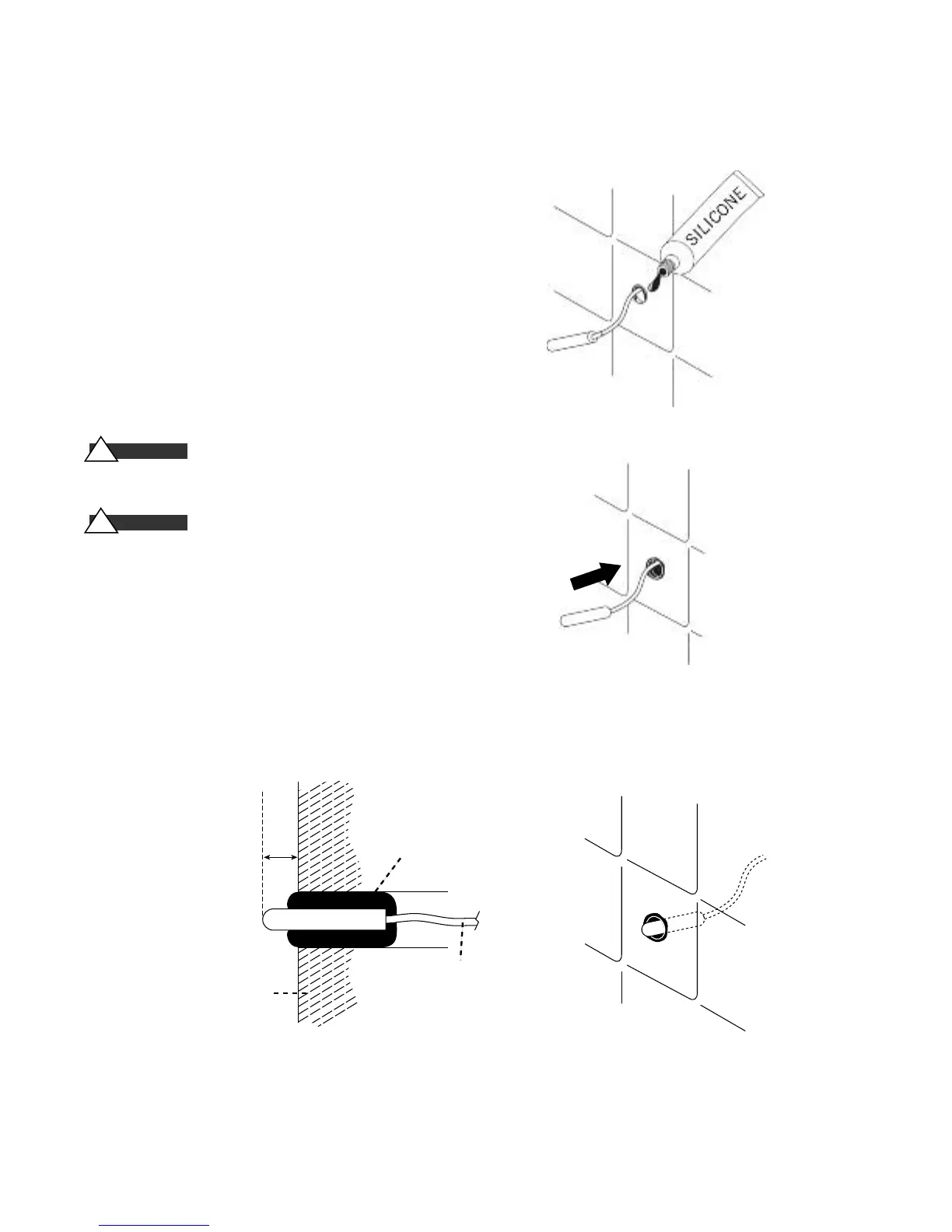

6. With a minimal length of the cable exposed apply silicone (provided)
to the hole in the wall as required to create a moisture seal as
shown in Diagram 3.
7. Push the temperature cable and bulb into hole as required to leave
minimum 1/4", maximum 1/2" of the bulb exposed as shown below.
Insure a minimum of 1/4" of the temperature bulb is
exposed to the air. Failure to do so may result in an inoperative control and
a hazardous condition.
The exposed area of the temperature bulb must be free
of silicone or any materials or obstructions that prevent direct exposure to
the steam room air. Failure to do so may interfere with the ability to sense
temperature and may result in excessive steam room temperatures.
!
WARNING
!
WARNING
INSTALLED REMOTE
TEMPERATURE PROBE
1
⁄4" Minimum
1
⁄2"
Maximum
Silicone Sealant
Cable
Wall
SECTIONAL VIEW
Diagram 4
Steam Room Interior
Diagram 3
