Bolt™ Jr+ Quick Start Guide
40

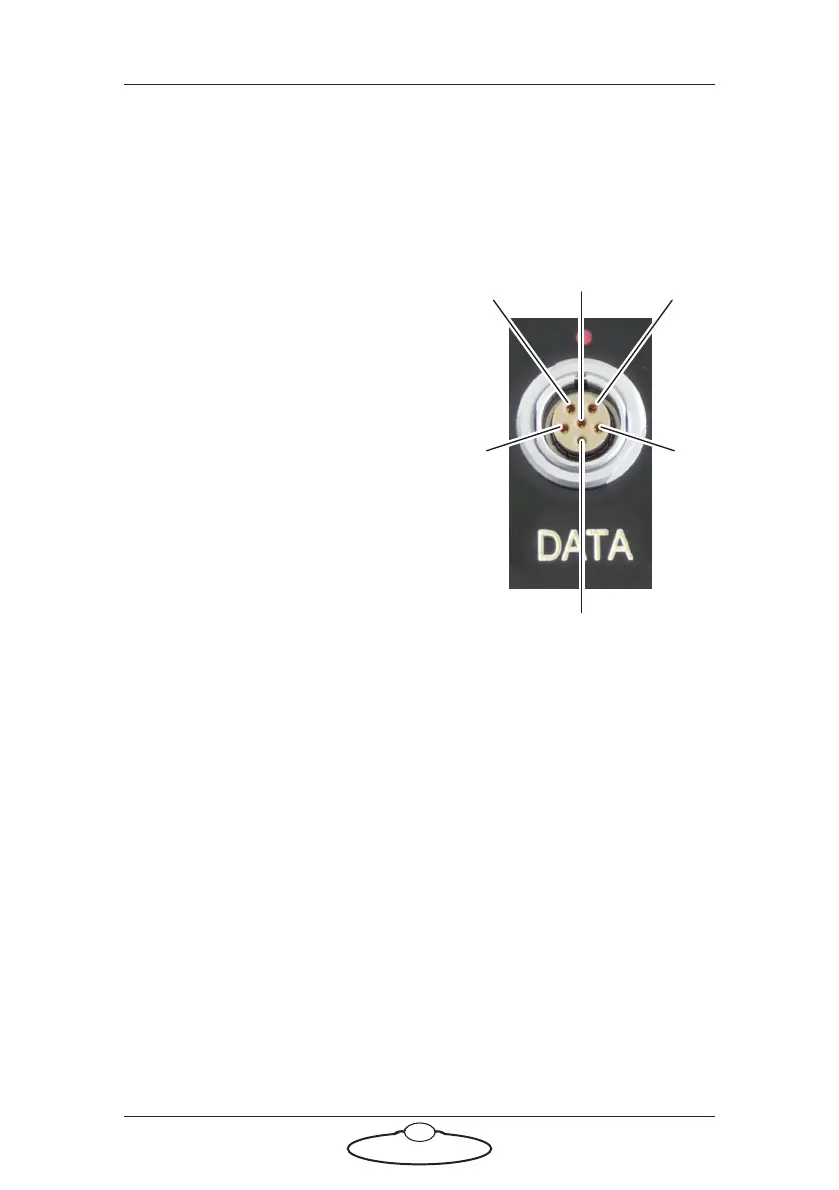

Data In connector
This is a DataLink In connector for connection to a controller using a
DataLink connection. DataLink In (Up Link) connector for connection to
a DataLink device higher up in the DataLink daisy-chain. For usage see.
page 37.
1. Watchdog–
2. Link1Out–
3. Link1Out+
4. Link1In–
5. Link1In+
6. Watchdog+
5
4
1
2
3
6
