Bolt™ Jr+ Quick Start Guide
36

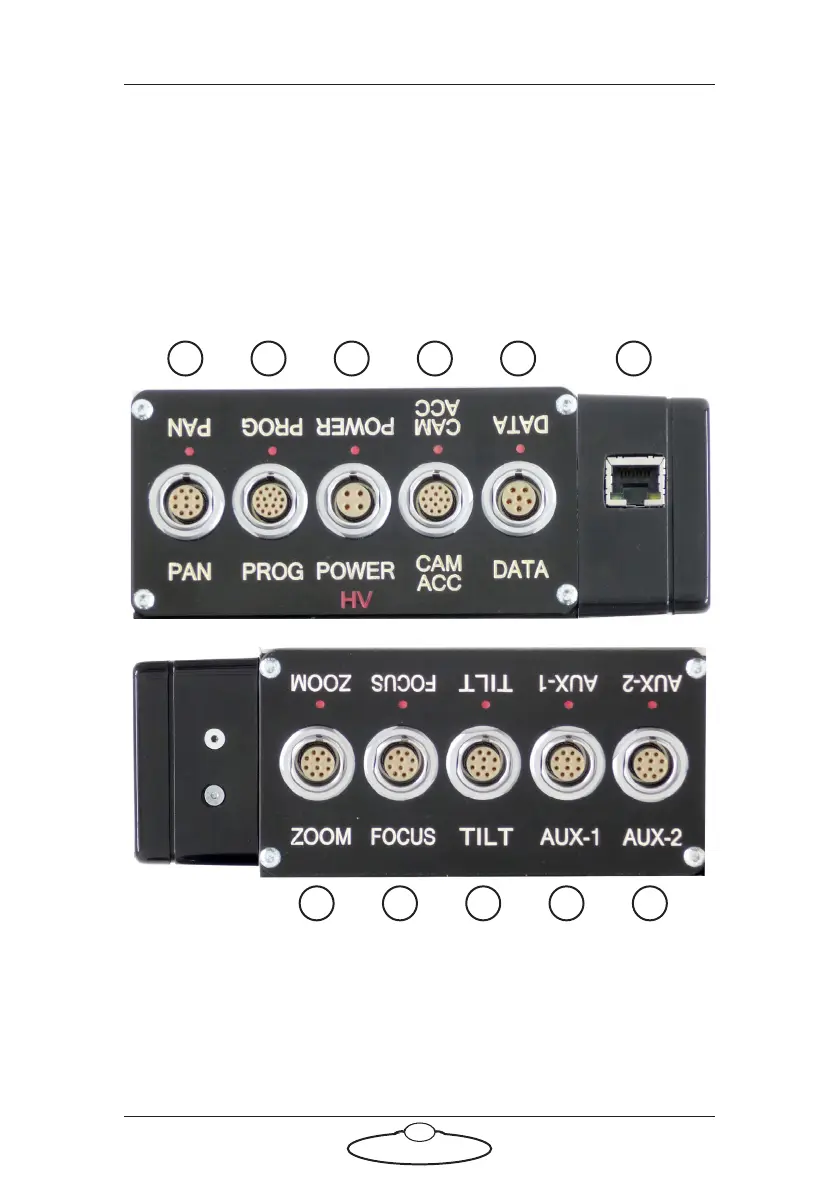

Ulti-box connector summary
The Ulti-box that is mounted on the Bolt Jr+ arm is a multi-purpose
interface box that is used to control servo motors on many MRMC heads
and Lens Control Motor (LCM) units. The Ulti-box offers versatile
connections for many camera and lens configurations although some of
the axes connectors such as PAN, TILT, and DATA are not ordinarily used
in the context of Bolt Jr+, as Bolt Jr+ itself provides these features.
1. PAN connector for the Pan servo motor on a head. For pin-out
information see Servo motor connector on page 38.
2. PROG serial connector for connection to a controller using a Serial
RS232 connection (as an alternative to an Ethernet or DataLink
connection), and for updating the firmware in the Ulti-box. For
pin-out information see Program serial connector on page 38.
1 3 4 5 62
7 8 9 10 11
