RT-14 Quick Start Guide

Connector pin-out information

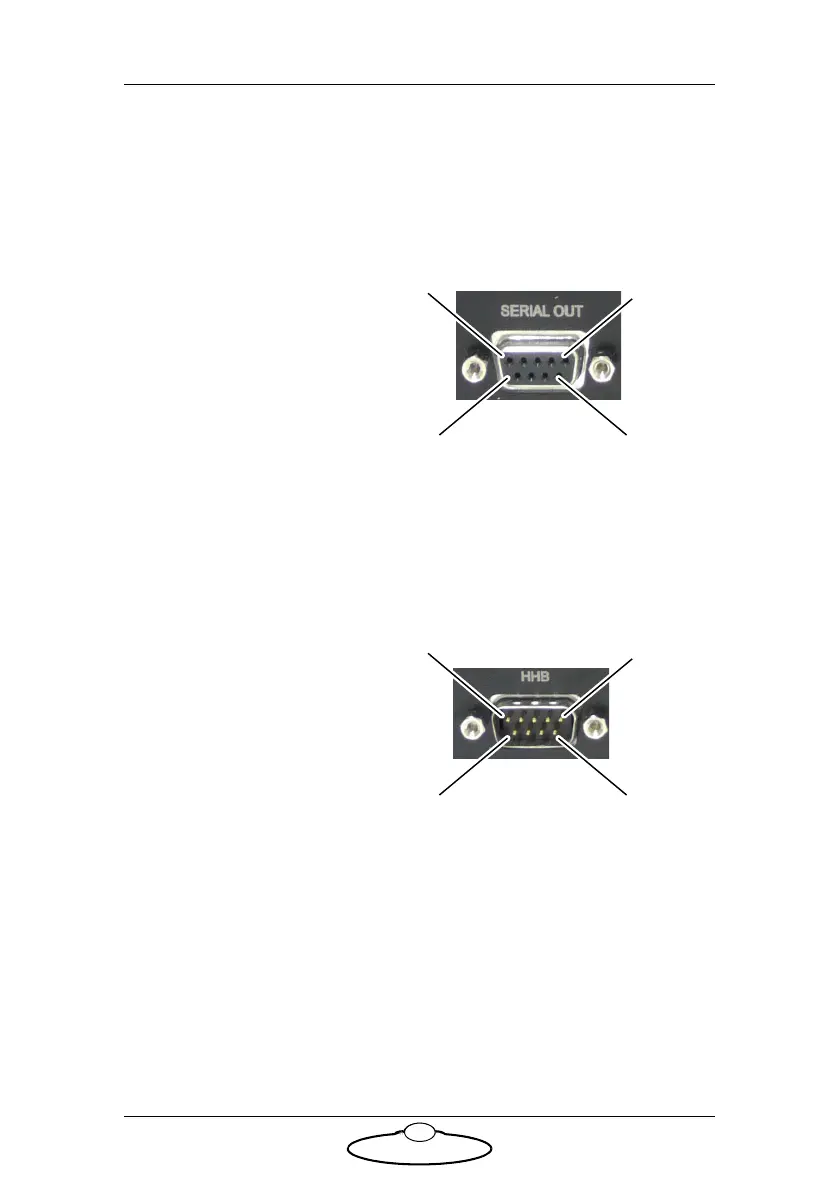

Serial Out connector

Serial Out is a (9-way D-type Female) connector can be used for

connecting any head that uses Ulti-box.

1. N/C

2. N/C

3. RX

4. TX

5. N/C

6. GND

7. N/C

8. N/C

9. N/C

10. N/C

HHB connector

HHB is a (9-way D-type Male) connector used for connecting the Hand

Held box to the RT-14.

1. +12V

2. RX

3. TX

4. N/C

5. GND

6. N/C

7. E-Stop

8. E-Stop

9. N/C
