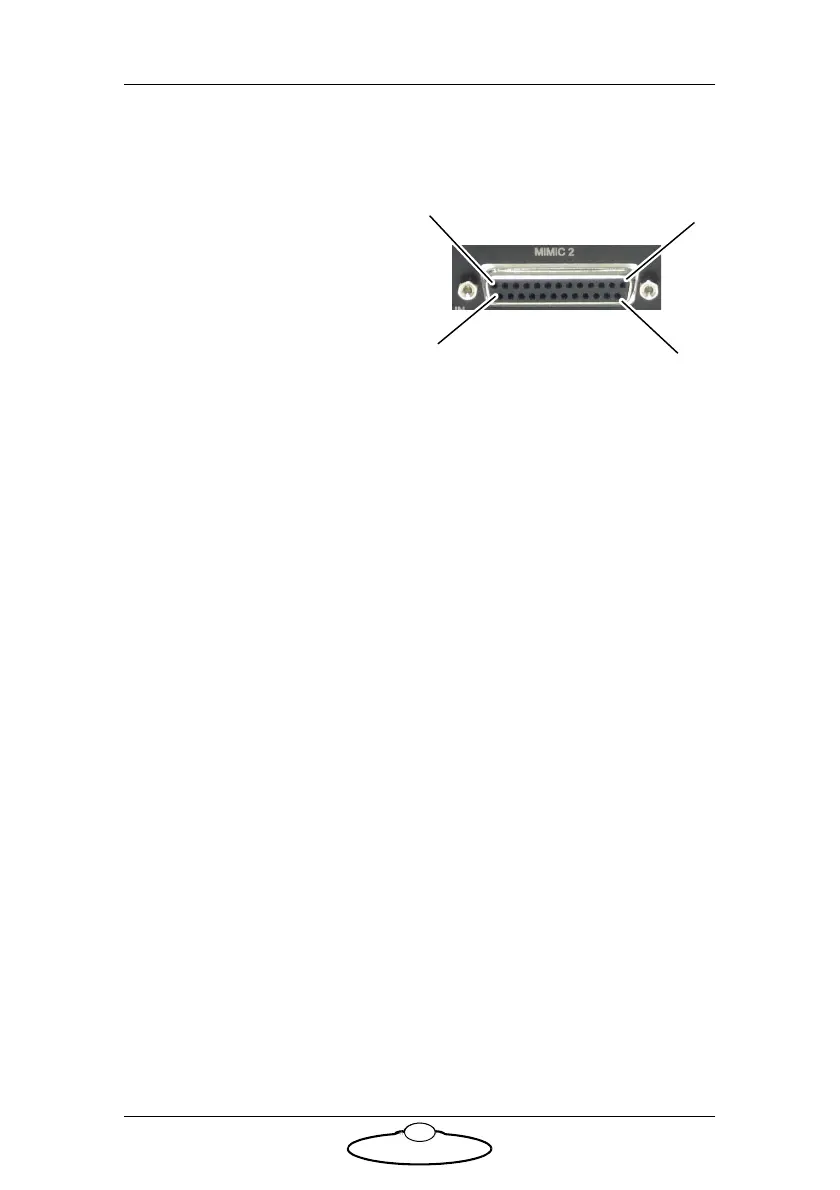

MIMIC 2 connector
MIMIC 2 is a (25-way D-type Female).
1. A5+
2. B5+
3. A6+
4. B6+
5. A7+
6. B7+
7. A8+
8. B8+
9. Mimic GPO 5 (Open collector) LED
10. Mimic GPO 6 (Open collector) LED
11. Mimic GPO 7 (Open collector) LED
12. Mimic GPO 8 (Open collector) LED
13. +12V
14. A5–
15. B5–
16. A6–
17. B6–
18. A7–
19. B7–
20. A8–
21. B8–
22. +5V
23. GND
24. GND
25. GND
13 1
25 14
