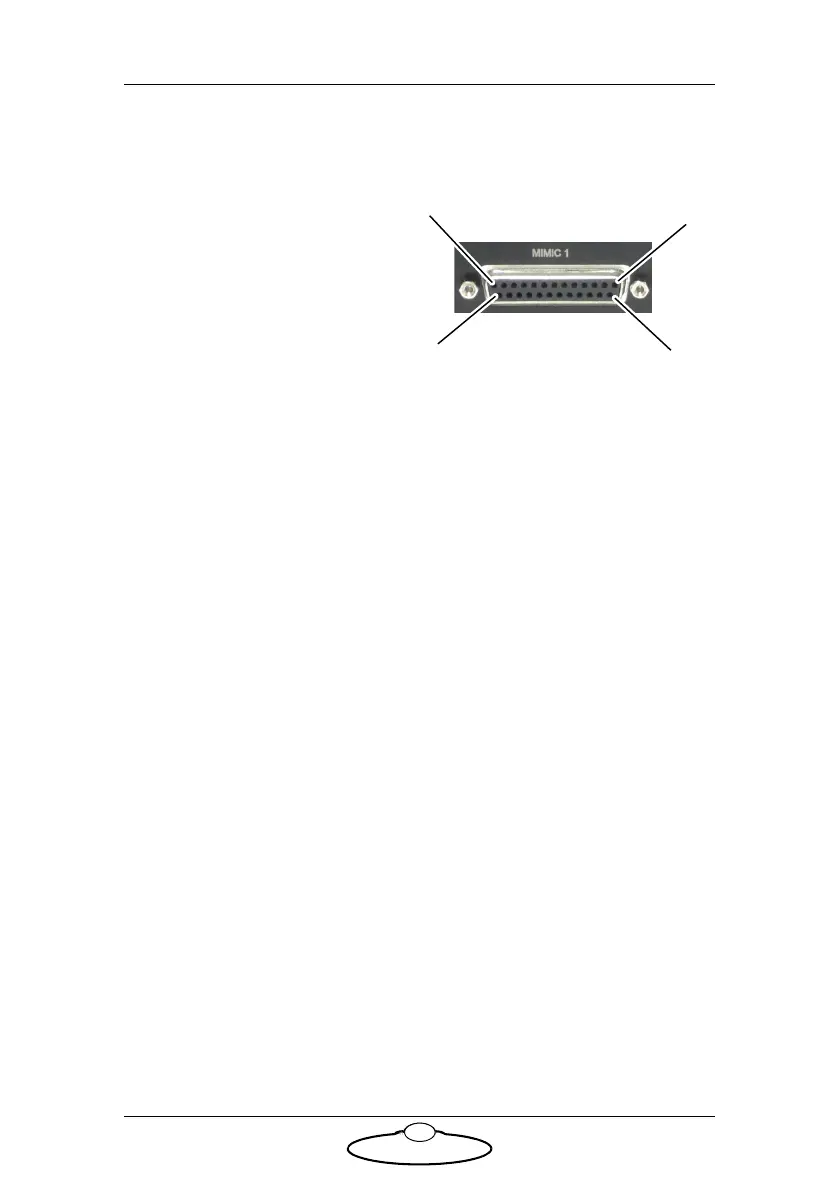

MIMIC 1 connector
MIMIC 1 is a (25-way D-type Female) connector.
1. A1+
2. B1+
3. A2+
4. B2+
5. A3+
6. B3+
7. A4+
8. B4+
9. Mimic GPO 1 (Open collector) LED
10. Mimic GPO 2 (Open collector) LED
11. Mimic GPO 3 (Open collector) LED
12. Mimic GPO 4 (Open collector) LED
13. +12V
14. A1–
15. B1–
16. A2–
17. B2–
18. A3–
19. B3–
20. A4–
21. B4–
22. +5V
23. GND
24. GND
25. GND
13
1
25
14
