37. IN6– (Not used)

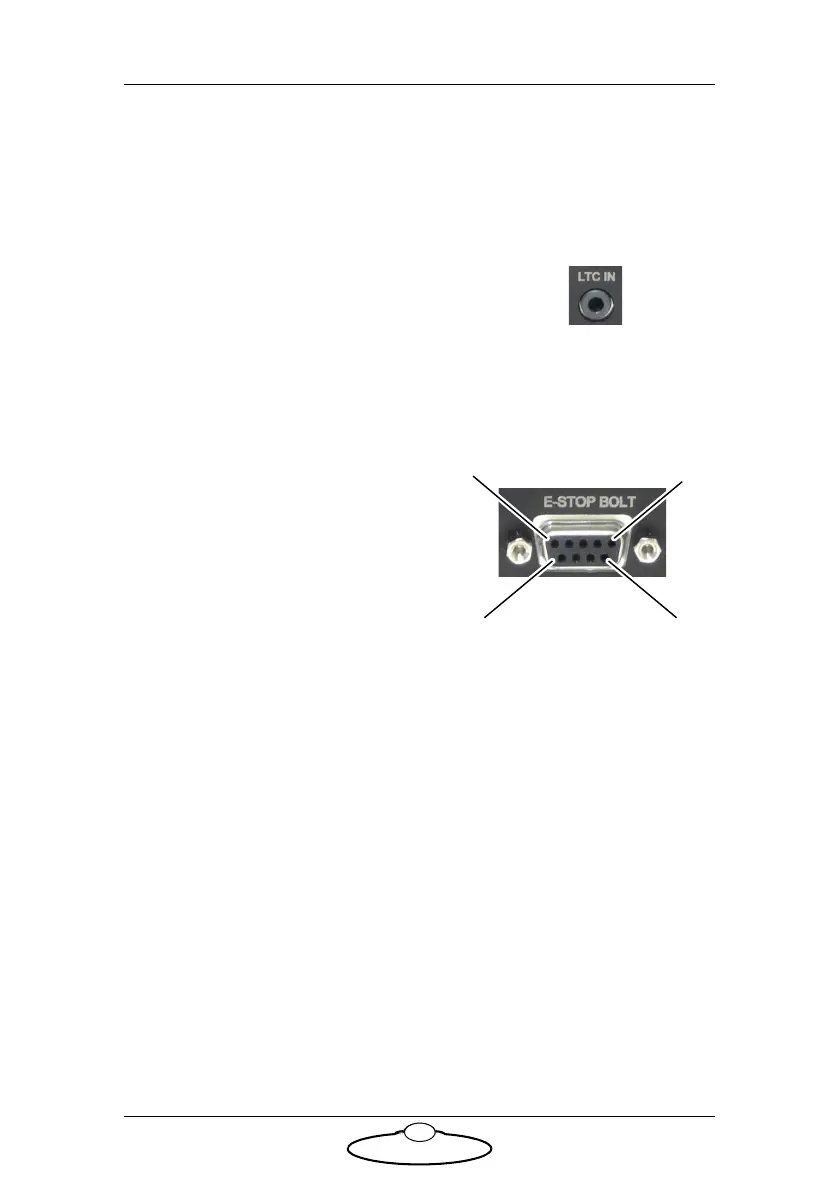

LTC In connector
LTC In is a (3.5 mm Stereo Female Jack) connector used for connecting
time-code to the RT-14.
1. N/C
2. LTC In Tip Ring
3. Sleeve
E-Stop bolt connector
E-Stop Bolt is a (9-way D-type Female) connector used for connecting the
emergency stop for Bolt to the RT-14.
1. Rig E-Stop 2
2. Rig E-Stop 3
3. N/C
4. Rig E-Stop 3
5. Rig E-Stop 2
6. N/C
7. N/C
8. N/C
9. N/C
6
1
5
9
