RT-14 Quick Start Guide
23

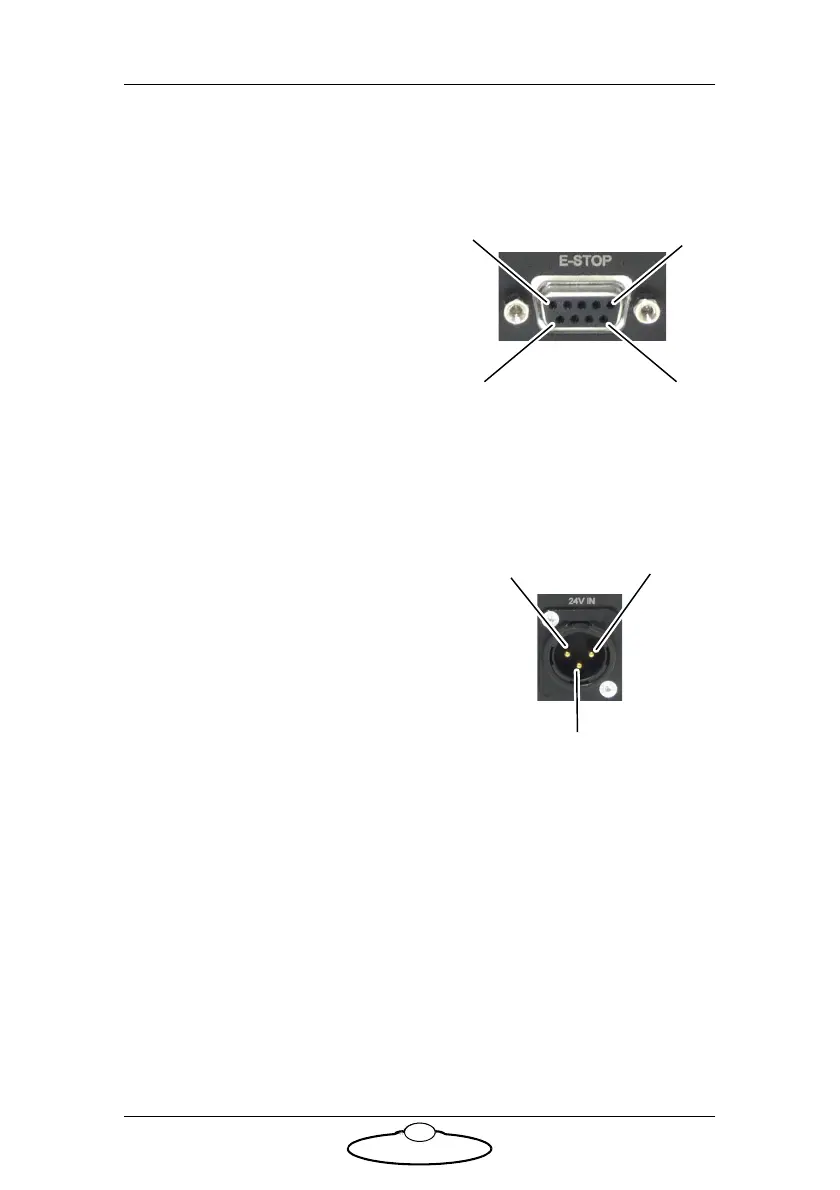

E-Stop connector
E-Stop is a (9-way D-type Female) connector used for connecting the
emergency stop to the RT-14.
1. Rig E-Stop
2. +12V
3. Override switch
4. GND
5. Rig E-Stop
6. Model Mover E-stop
7. N/C
8. N/C
9. Model Mover E-Stop
24V In connector
24V In is a (3-pin XLR Male) connector to supply power to the RT-14.
The RT-14 can run from 12-35 Volts DC.
1. GND
2. +24V
3. N/C
6
1
5
9
1
2
3
