MRMC RT-14 - Video in Connector; Rig;Heads Connector

RT-14 Quick Start Guide
20

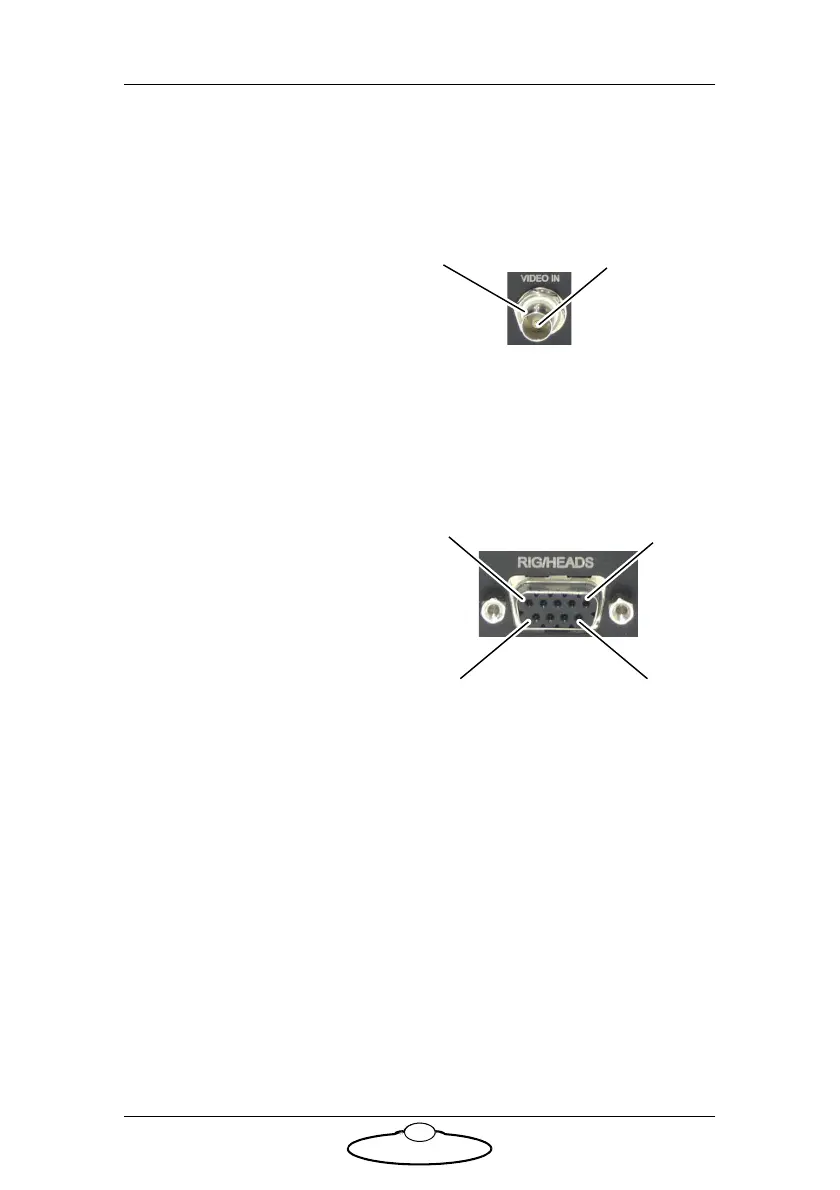

Video In connector
Video In is a (BNC Female) connector used for connecting a Tri-level/
Bi-level video sync signal to the RT-14. The RT-14 can synchronize on the
incoming analogue video signal through this port.
1. Video In (HD or SD)
(Center)
2. GND
Rig/Heads connector
Rigs/Heads is a (9-way D-type Female) connector used for connecting the
rig or head to the RT-14.
1. Watchdog–
2. Data Out–
3. Data In–
4. E-Stop+
5. N/C
6. Watchdog+
7. Data Out+
8. Data In+
9. E-Stop–
2
1
6
1
5
9
