DESCRIPTION MSA
12
ALTAIR 4 - Operating Manual
2.2.6 On-Screen Indicators
COMB/EX
O2
H2S
CO

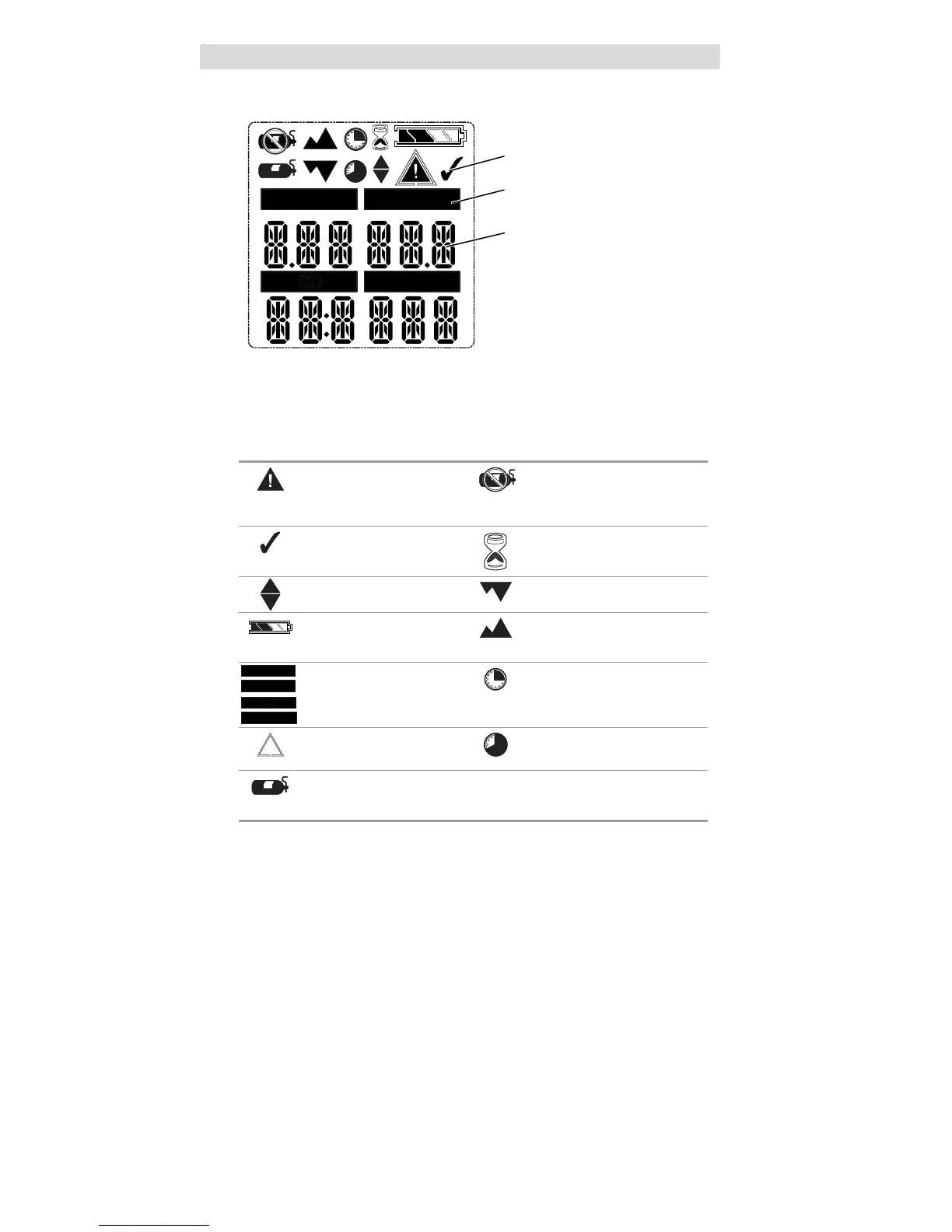

Figure 2-2 Display
1 Graphic Symbols
2 Gas Type
3 Gas Concentration
Alarm Symbol – Indicates
alarm state.
No Gas Cylinder – Indicates
cal gas should not be applied
and instrument must be
exposed to fresh air.
Bump Check Symbol –
Indicates successful bump
or cal.
Hourglass – Indicates user
should wait.
Indicates required
interaction.
Minimum – Indicates a
minimum value or low alarm.
Battery Condition –
Indicates the battery
charge level.
PEAK Symbol – Indicates a
PEAK reading or high alarm.
COMB/EX
O2
CO
H2S
Sensor Labels. STEL Symbol – Indicates a
STEL alarm.
Motion Alert
TM
– Indicates
Motion Alert
TM
is active.
TWA Symbol – Indicates a
TWA alarm.
Cal Gas Cylinder –
Indicates cal gas must be
applied.
Graphic Symbols
1
2
3
