MAINTENANCE, DISMANTLING AND DISPOSAL
9Main tenance, Di smantlin g and dis posal
Warning: IMPORTANT!
Disconnect the power supply cord of the machine prior
to any maintenance and repair operation, save when
otherwise specified.
Maintenance operations must be performed by skilled
technicians wearing the following PPE:
- Protective gloves against mechanical hazards.
-Safety shoes
-Protective goggles.
Always use original Keyline spare parts.
9.1.0 General information
9.1.1 Type of Maintenance
Ordinary Maintenance
• Servicing operations that must be carried out periodically by
the machine operator.
• The purpose of ordinary maintenance is guarantee regular
functioning of the machine and a consistent quality of the
product.
• The maintenance schedule may vary in relation to work or en-
vironmental conditions in the place of installation.
Complex Maintenance
• Complex maintenance consists of actions to be taken only
when given conditions occur (break downs, failures, replace-
ment of parts).
• Due to the complex nature of such actions and the special
tools required, we recommend you should contact qualified
personnel from or authorized by Keyline S.p.A.
9.2.0 Ordinary maintenance
We recommend inspecting the machine periodically and replace
worn parts.
9.2.1 Cleaning the working area
At the end of each working day clean the machine removing scrap
and burrs to ensure proper functioning of the machine and to pre-
vent any damage to its parts. Use the supplied brush and/or an
extraction fan.
Empty the shaving collection drawer every time that the work
surface is cleaned or whenever it is full of shavings.
Do not clean the machine with compressed air.
9.2.2 Protective shield and console display cleaning
To clean the clear protective shield and the console display use a
microfibre cloth.
Note: Do not use alcohol-based products or solvents!

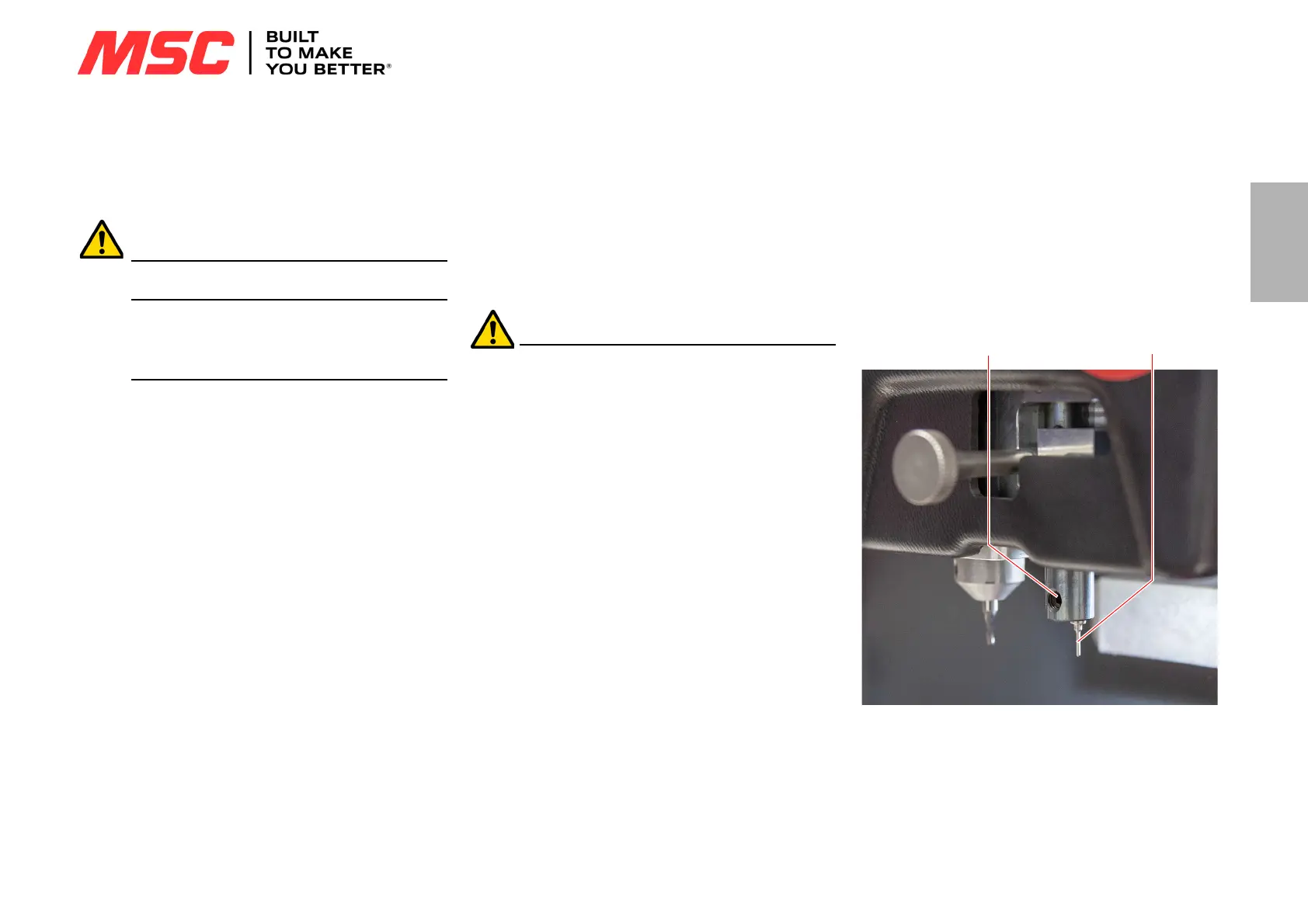

9.2.3 Tracer points replacement
How to proceed:
• Remove the tracer point grub screw (1).
• Remove the tracer point (2).
• Install the new tracer point, making certain that the groove is
aligned with the grub screw hole.
• Replace and tighten the grub screw to fasten the tracer point.
