4 Pro-Source Man. cod. B411107FG MSC
MACHINE DESCRIPTION
2Machine description
2.1.0 Technical features
2.2.0 Pro-Source main features
The Pro-Source electronic key cutting machine is a professional
machine that can help the operator in the cutting of automotive
laser and edge cut keys.
The Pro-Source key cutting machine is used to duplicate the fol-
lowing types of keys:

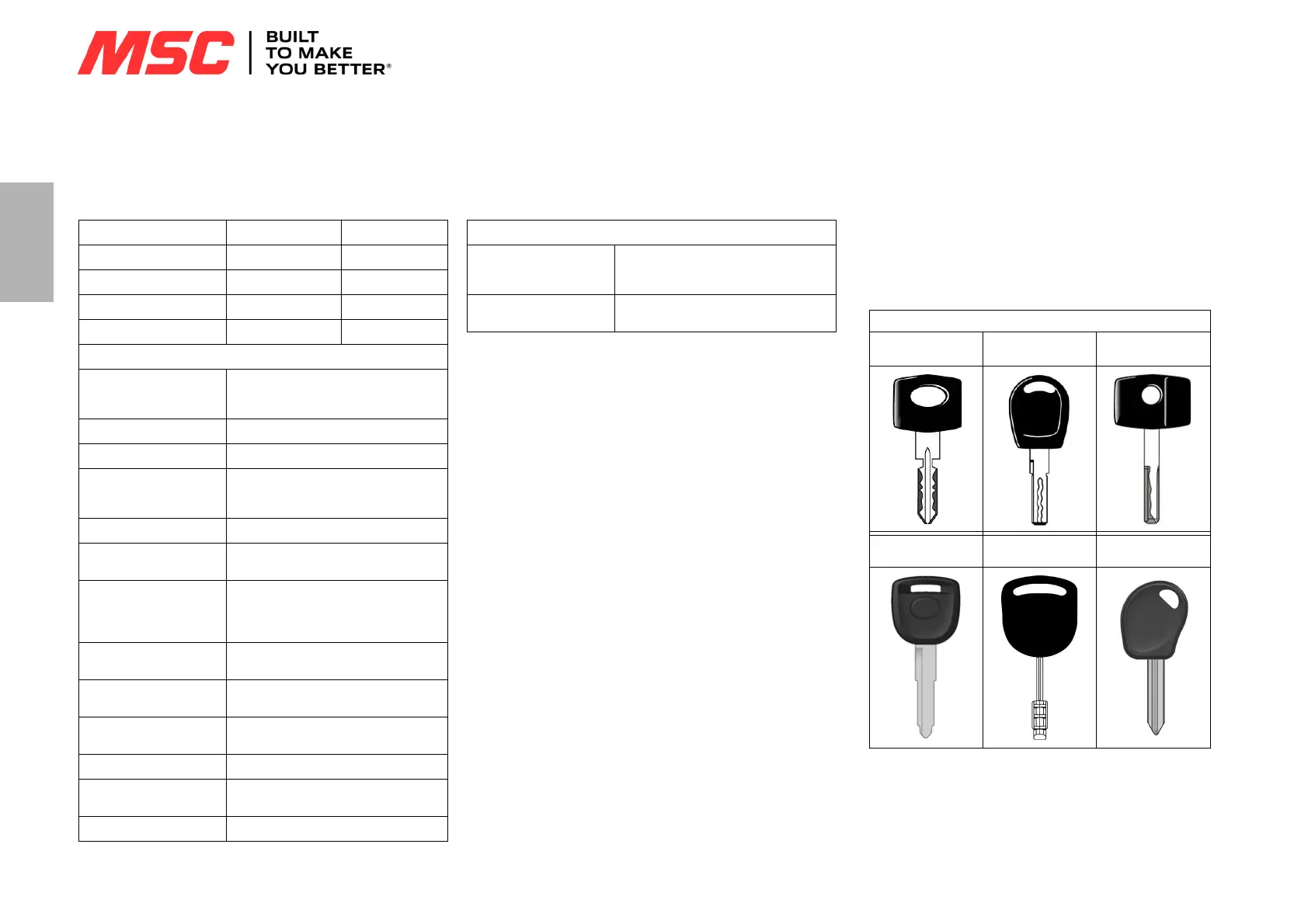

Dimensions Pro-Source Console
Width 300 mm (11.81”) 200 mm (7.87”)
Height 310 mm (12.20”) 150 mm (5.90”)
Depth (Length) 440 mm (17.32”) 50 mm (1.96”)
Weight 17,5 Kg (38.58lbs) 0,8 Kg (1.76lbs)
Pro-Source technical features
Power supply
- Machine
- Power pack
48V DC - 2,5 Amp
110/250V - 50/60Hz - 160W
Absorption 120W (35W in stand-by)
Motor Brushless
Electronic Equipment Main board with CPU iMX6, 1 GB
RAM, 4 GB memory, high resolution
motion control
External connections 1 USB port; 1 LAN
Key Reading / Decoding
system
Electric contact
Clamps Unified U clamp for automotive la-
ser and edge cut keys (for addition-
al optional clamps, please refer to
par. 2.3.0)
Cutter 2mm carbide cutter for laser, edge
cut and Tibbe keys
Cutter speed 3000-8000 rpm (speed changes ac-
cording to programme)
Movements / Axes 3 axes driven by stepper motors on
interpolated linear movements
Operating temperature 0°C ÷+ 40°C (32°F ÷ 104°F)
Acoustic pressure level
L
p
(A)
78,5 dB(A)
Lighting Working area lighted by LED lights
Console technical features (option)
User Interface 7” industrial colour touch screen,
16:10, resolution 800x480 px, inte-
grated CPU
Power supply DC 24V (fed by the key cutting ma-
chine)
Laser-type keys
4 External cuts Double internal
bitting
Double external
bitting
Double bitting
edge cut keys
Tibbe-Ford keys
(optional)
Simplex keys
(optional)
