MSG Equipment MS002 COM - Page 13

English
User manual
13
Alternator Voltage regulator

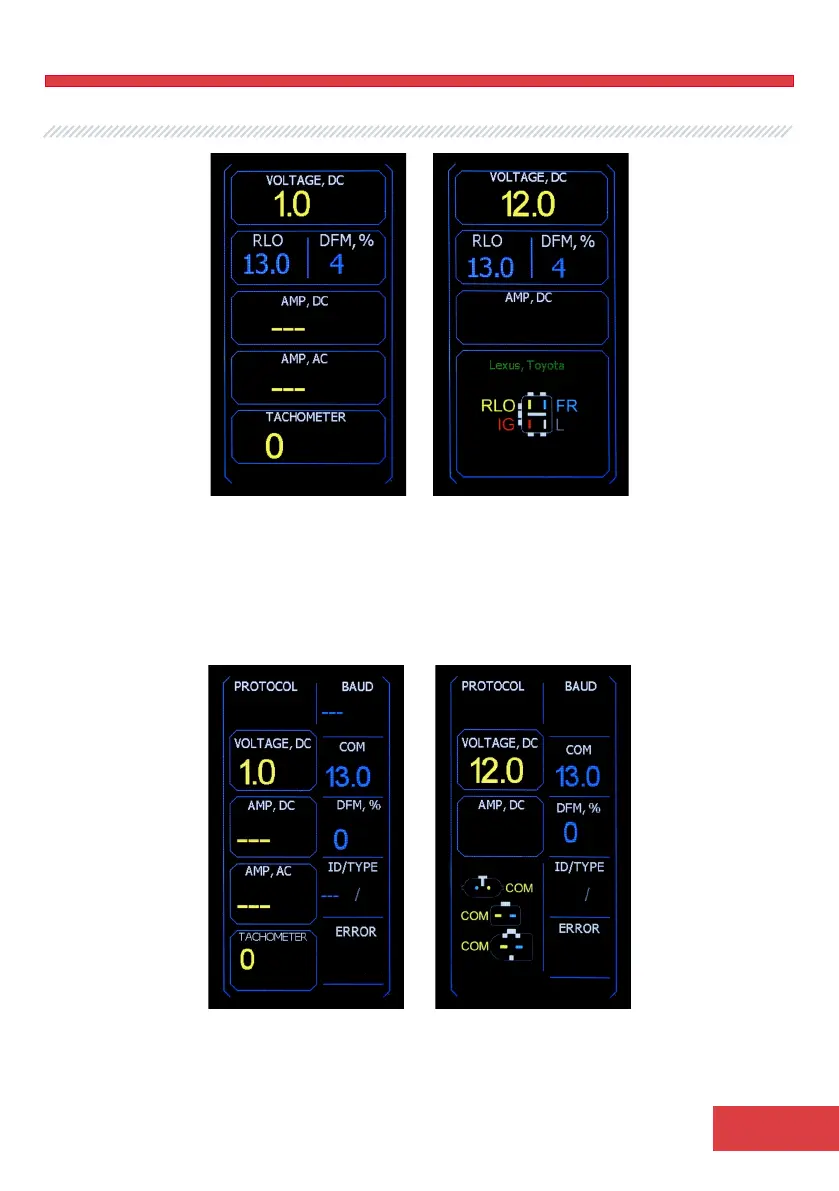

Figure 8. Bench display during the diagnostics
of alternator/RLO voltage regulator type
The information shown on the display for the alternators and voltage regulators of COM type
(fig. 9):
Alternator Voltage regulator
Figure 9. Bench display during the diagnostics
of alternator/voltage regulator of COM type
