User manual
17

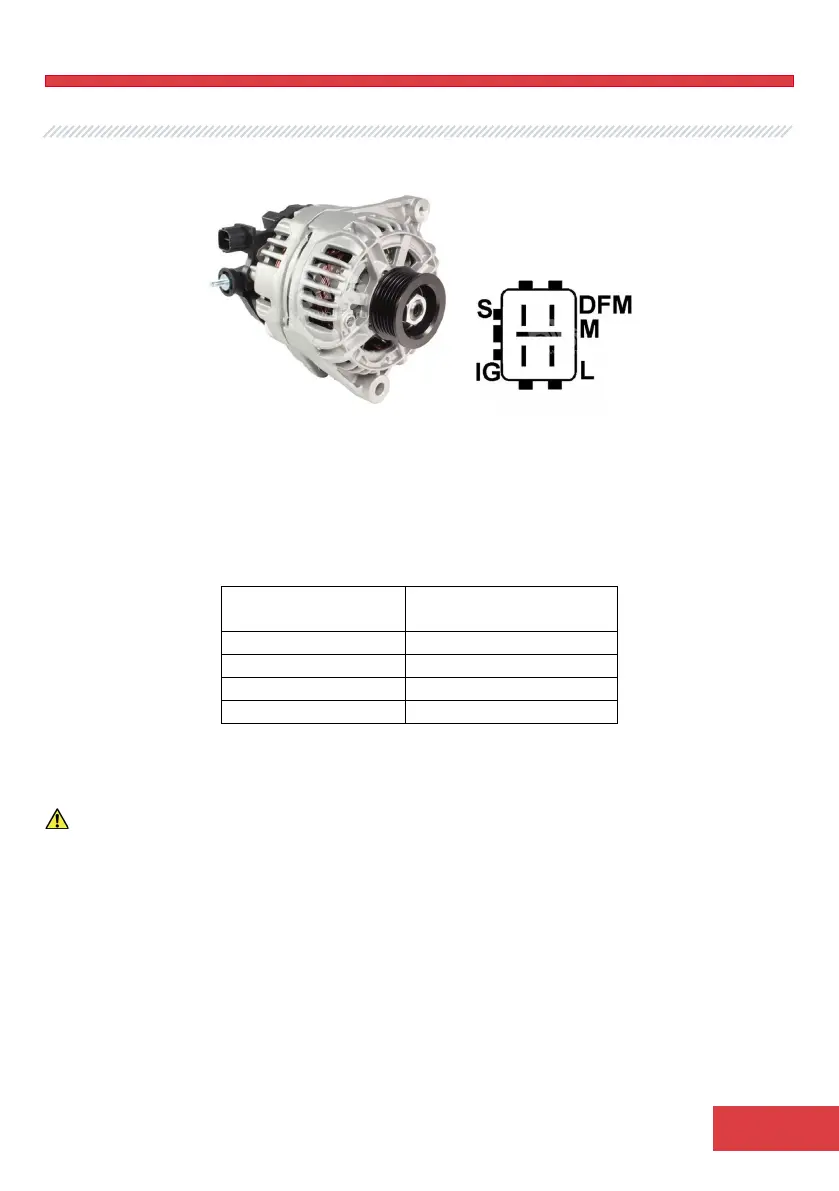

Figure 11 illustrates the example of connection layout of Toyota 2706020230 alternator.
Figure 11. Toyota 2706020230 alternator and connector terminal references
Referring to the connector terminals on the figure 11, first, identify the alternator type (see
Appendix 1). Now, the terminal L refers to Lamp alternator type. Next, referring to Appendix 1,
check what bench outputs should be connected with the alternator (connection layout - Table 2).
Table 2 – Toyota 2706020230 alternator connection
Terminal
Bench
diagnostic output
S
B+
IG
B+
L
D+
DFM (M)
FR
2. Mount the unit on the working spot. The pulley shall be parallel to the used belt.
3. Fix the unit on the working spot, as follows:
WARNING! To activate the chain and belt tightening buttons it is necessary to enter the
alternator test mode after switching on the stand and then exit it.
3.1. Press Chain release to loosen the chain to the required length.
3.2. Fix the chain to the shoulder in the working spot and press Tighten chain. The tightening
will stop automatically.
4. Put the belt on the alternator pulley.
4.1. Press Belt release to add the required length of the belt. Put the belt on the alternator
pulley and press Tighten belt.
4.2. Tighten the belt until the tension is close to the one in a car. The tension is estimated
subjectively. Press Tighten belt one more time to stop the belt tightening.
