Chapter 5 - Introduction to Realtek ALC 888
5-15
n 6-Channel Mode for 6-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector, two
speakers to the rear-channel
and two speakers to the cen-
ter/subwoofer-channel Line Out
connectors.

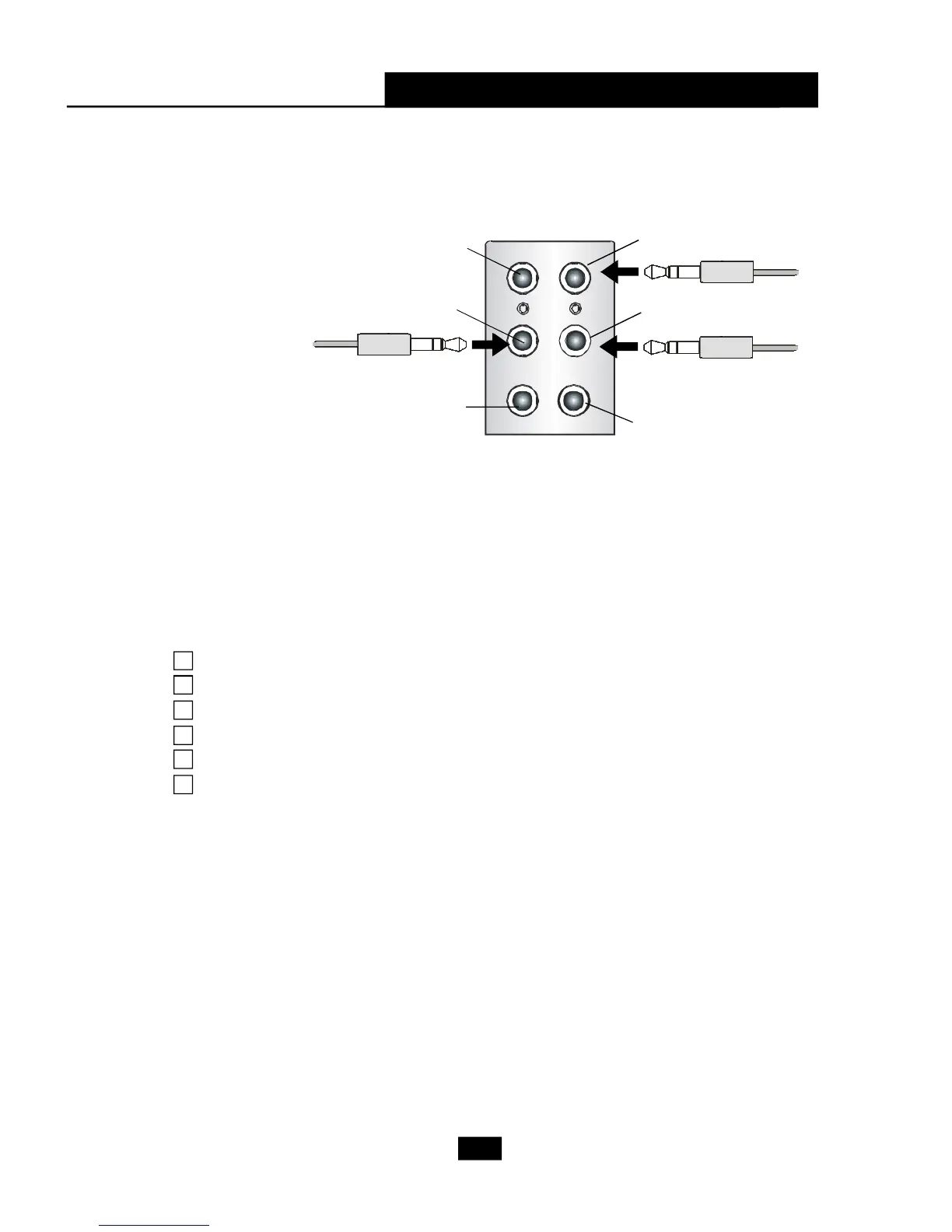

6-Channel Analog Audio Output
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 Side Surround Out (Side channels, but no functioning in this mode)
1
2
6
4
5
3
