MSI Hetis 945 - 5.3 Multi-Channel Audio Function: 8-Channel Mode; Connecting Speakers for 8-Speaker Output

5-16
n 8-Channel Mode for 8-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector, two
speakers to the rear-channel,
two speakers to the center/
subwoofer-channel Line Out
connectors, and two speakers
to the side-channel Line Out
connectors.

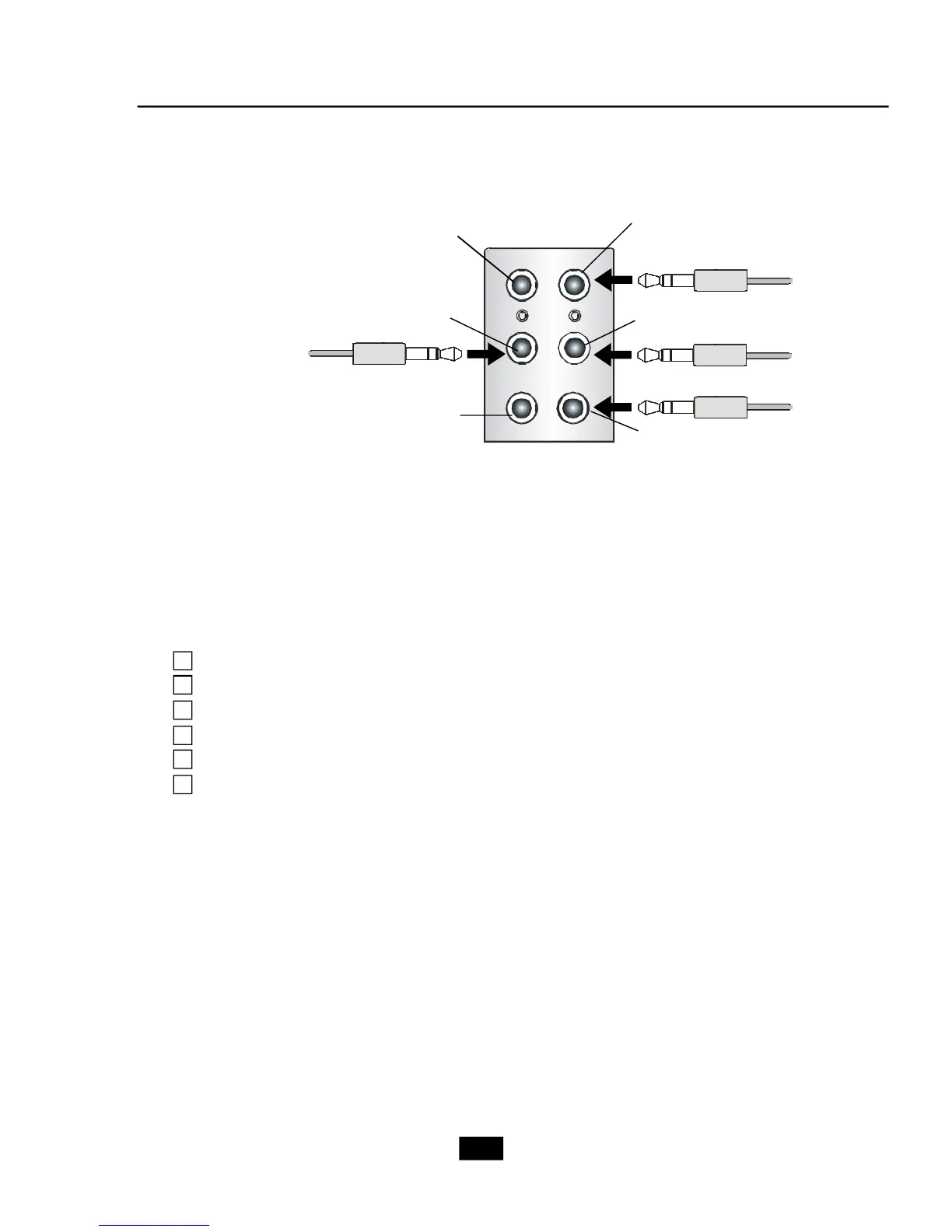

8-Channel Analog Audio Output
1 Line Out (Side channels)
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 Side Surround Out (Side channels)
1
2
6
4
5
3
