MSI MS-6340 - Back Panel; Mouse Connector: JKBMS1; Keyboard Connector: JKBMS1

Chapter 2
2-8
Mouse Connector: JKBMS1
The mainboard provides a standard PS/2
®
mouse mini DIN connector for
attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this

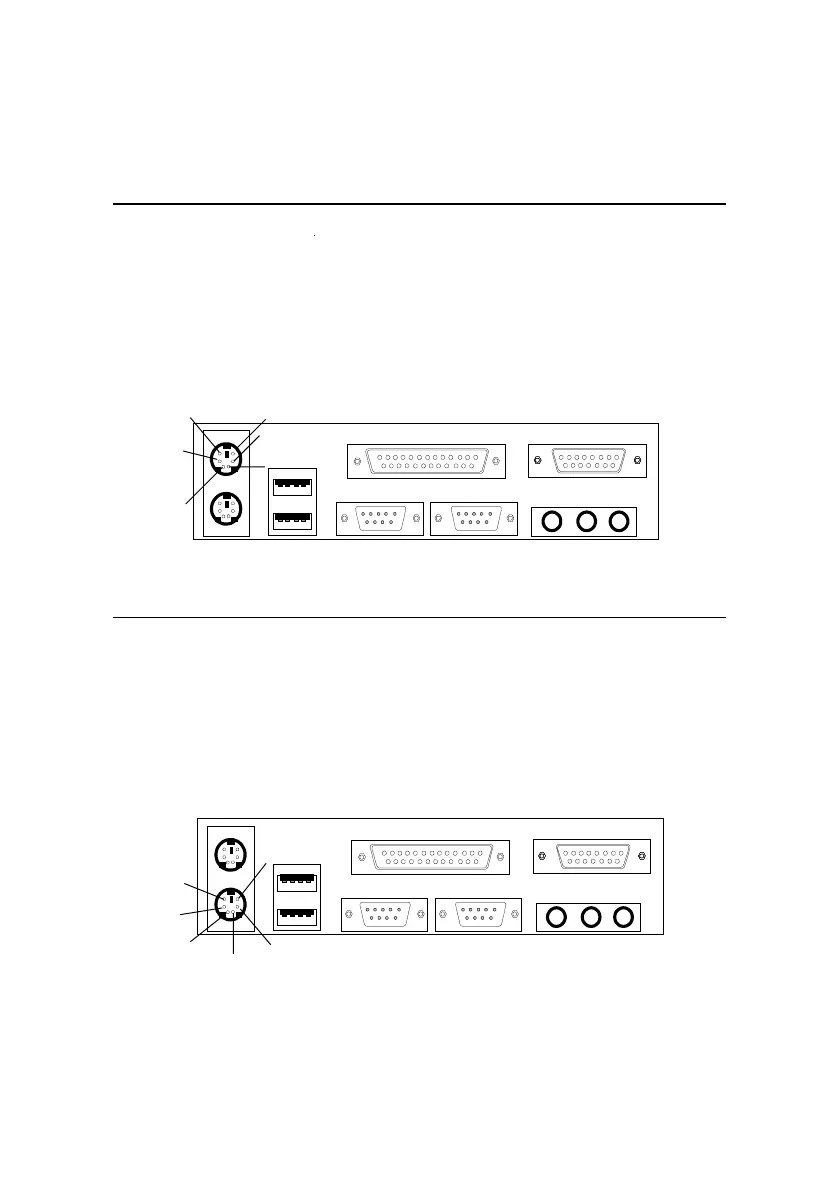

connector. The connector location and pin definition are shown below:
Keyboard Connector: JKBMS1
The mainboard provides a standard PS/2
®
keyboard mini DIN connector for
attaching a keyboard. You can plug a keyboard cable directly to this
connector.
Back Panel
PS/2 Mouse (6-pin Female)
Pin1
Mouse DATA
Pin6
NC
Pin2
NC
Pin4
VCC
Pin3
GND
Pin5
Mouse Clock
PS/2 Keyboard (6-pin Female)
Pin1
KBD DATA
Pin6
NC
Pin2
NC
Pin3
GND
Pin5
KBD Clock
Pin4
VCC
