MSI MS-6340 - CD-In;Aux Line-In;Modem-In Connector: JCD;JAUX; J_Phn

Chapter 2
2-22
Mono_Out is connected to the Modem Speaker Out connector.
Phone_In is connected to the Modem Microphone In connector.
CD-In/AUX Line-In/Modem-In Connector: JCD/JAUX/
J_PHN
JCD connector is for CD-ROM audio connector.
JAUX connector is used for DVD Add on Card with Line In connector.
J_PHN connector is for Modem with internal audio connector.

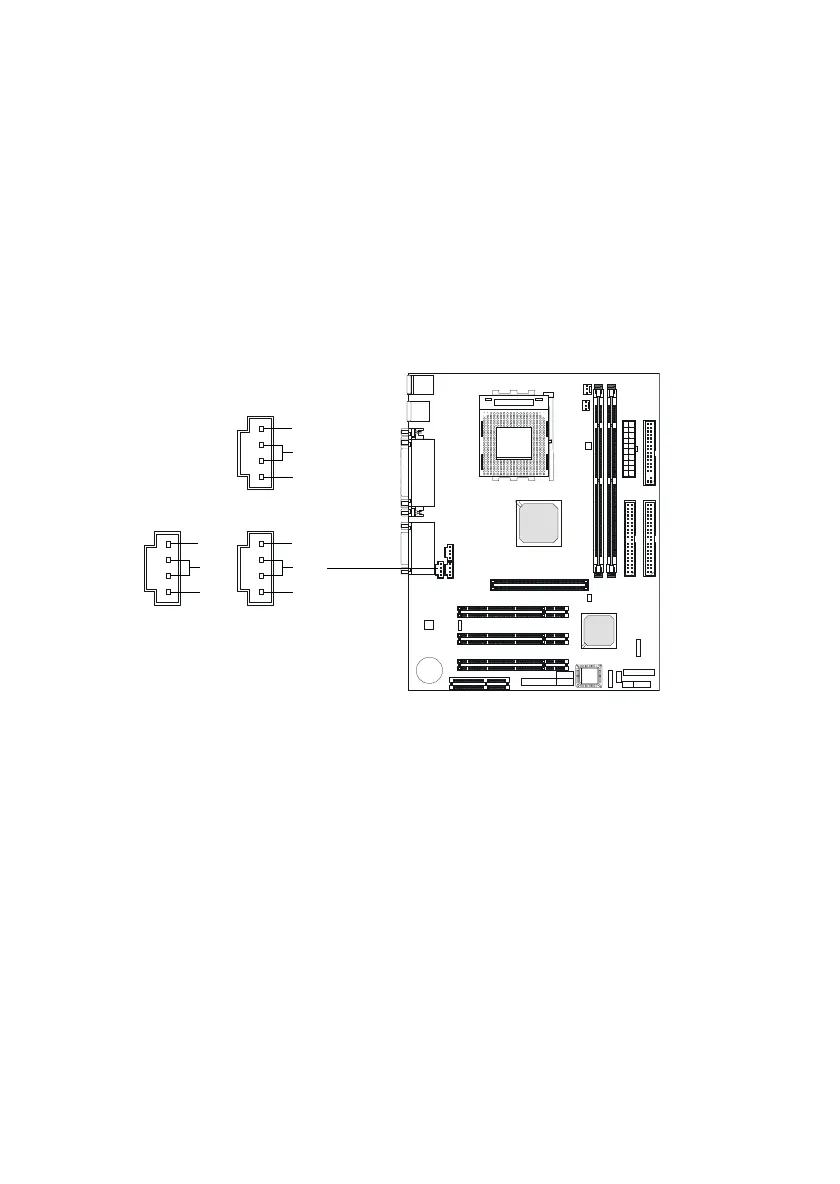

JAUX
L
GND
R
JCD
L
GND
R
J_PHN
Phone_In
GND
Mono_Out
