MSI MS-6340 - USB Front Connectors: USB3 & USB4

Hardware Setup
2-21
USB Front Connectors: USB3 & USB4
The mainboard provides two front Universal Serial Bus connectors. You
can connect optional USB connectors for Front Panel. USB4 is compliant to
Intel Front Panel I/O Connectivity Design Guide.
Pin Description Pin Description
1 VCC 6 USBD2+
2 GND 7 GND
3 USBD3- 8 USBD2-
4 GND 9 GND
5 USBD3+ 10 VCC
USB3 Pin Definition
Pin Description Pin Description
1 VCC 6 USBD3+
2 VCC 7 GND
3 USBD2- 8 GND
4 USBD3- 9 NC
5 USBD2+ 10 USB_FP_OC0
USB4 Pin Definition
*USB_FP_OC0 is Front Panel USB Overcurrent signal (Ports 2 & 3)

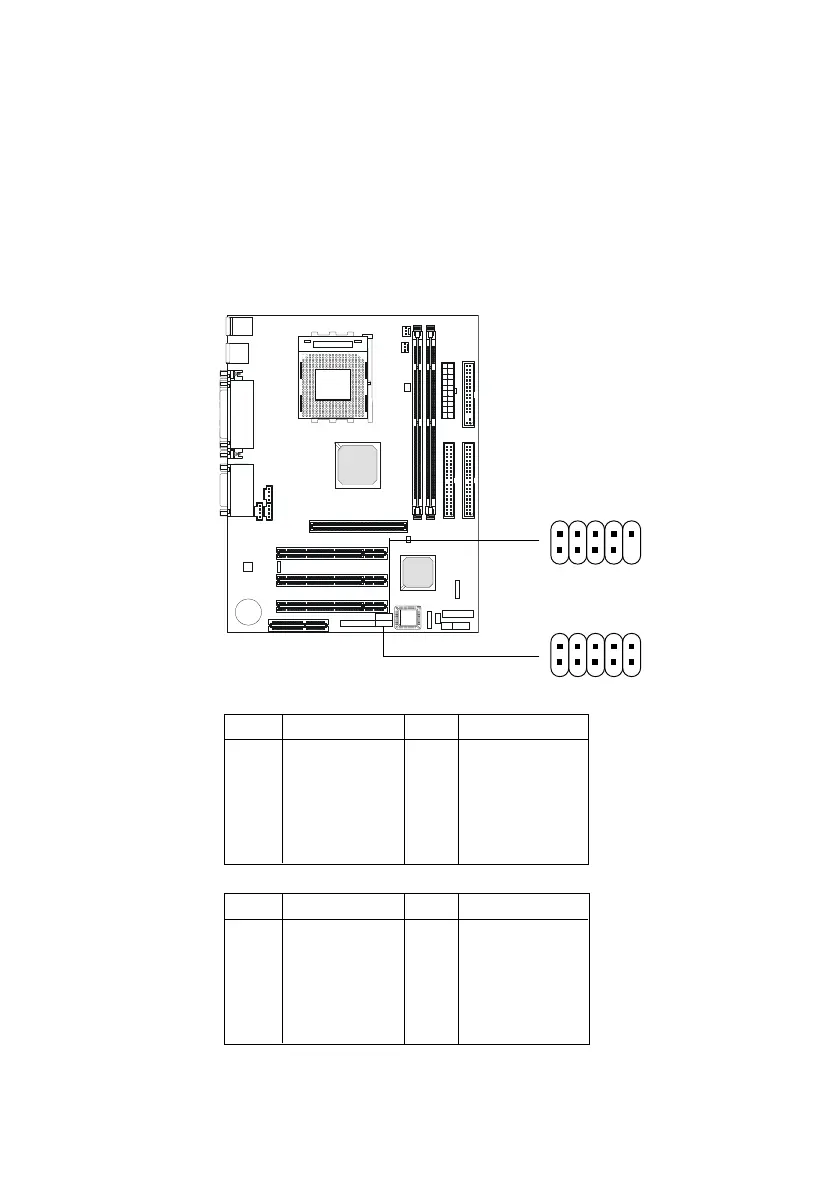

USB4
1 9
2 10
USB3
1 9
2 10
