Chapter 2
2-20

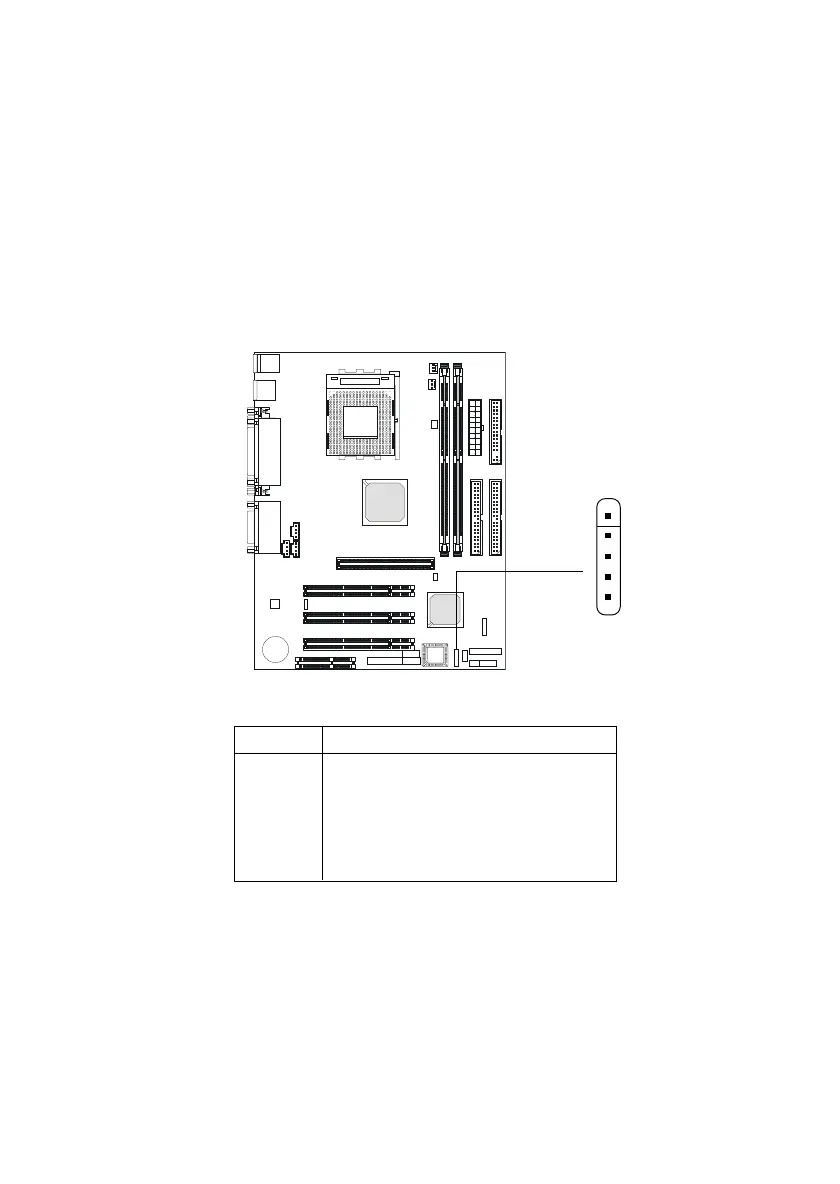

Modem Wake Up Connector: JMDM1
The JMDM1 connector is for use with Modem add-on card that supports
the Modem Wake Up function. To use this function, you need to enable
Wake-Up on Ring function in the BIOS setup utility.
Note: Modem wake-up signal is active “low”.
PIN SIGNAL
1NC
2 GND
3 MDM_WAKEUP
4NC
5 5VSB
Note: To be able to use this function, you need a power supply that
provides enough power for this feature. (Power supply with 750mA
5V Stand-by)
JMDM1
1
5
