Hardware Setup
2-19

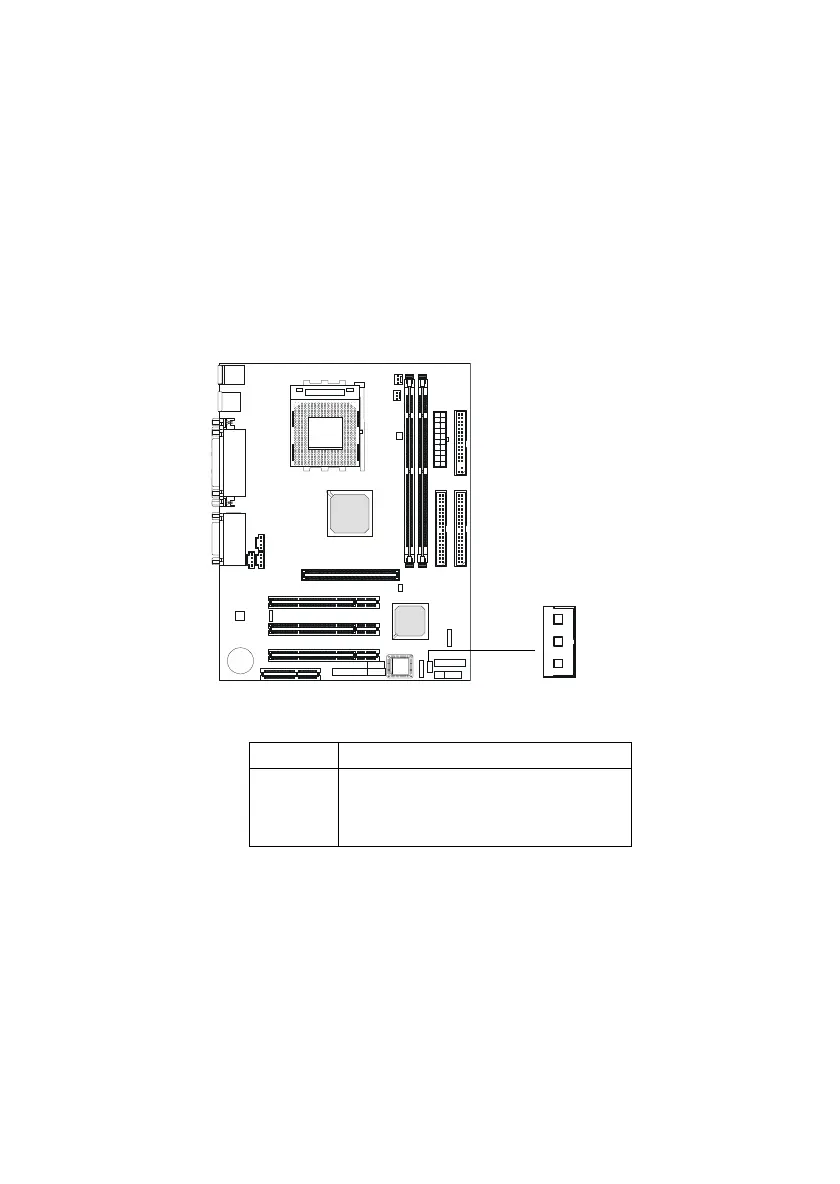

Wake-Up on LAN Connector: JWOL1
The JWOL1 connector is for use with LAN add-on cards that supports
Wake Up on LAN function. To use this function, you need to enable the
Wake-Up on LAN function in the BIOS setup utility.
PIN SIGNAL
1 5VSB
2 GND
3 MP_WAKEUP
Note: LAN wake-up signal is active “high”.
Note: To be able to use this function, you need a power supply that
provides enough power for this feature. (Power supply with 750mA
5V Stand-by)
JWOL1
1
3
