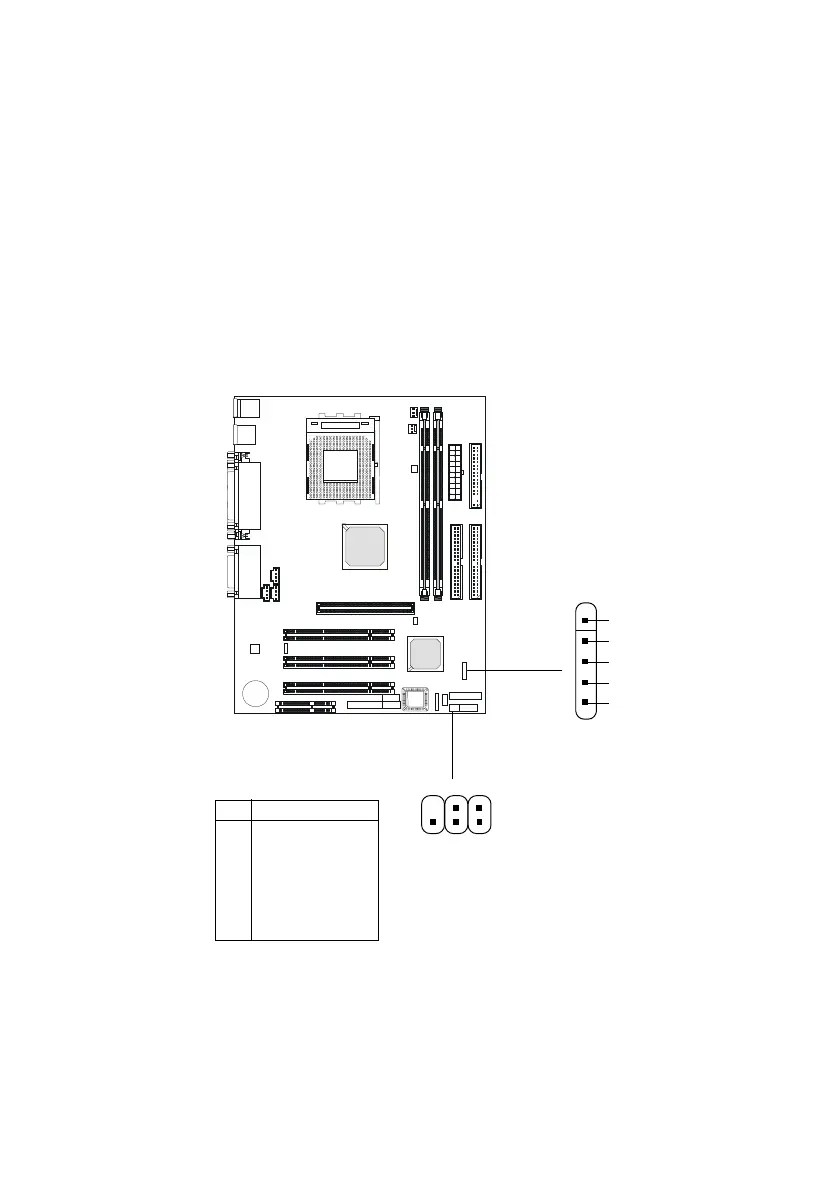

IrDA Infrared Module Connectors: J8 & J10
The mainboard provides two infrared connectors (J8 & J10) for IR modules.
J10 is compliant to Intel Front Panel I/O Connectivity Design Guide.
These connectors are for optional wireless transmitting and receiving
infrared module. You must configure the setting through the BIOS setup to
use the IR function.
1 Not assigned
2NC
3 +5V
4 GND
5 IRTX
6 IRRX
Pin Signal
J10 Pin Definition
VCC
NC
IRRX
GND
IRTX
1
J8
1
2
5
6
J10
