AGP (Accelerated Graphics Port) Slot
The AGP slot allows you to insert the AGP graphics card. AGP is an interface
specification designed for the throughput demands of 3D graphics. It intro-
duces a 66MHz, 32-bit channel for the graphics controller to directly access
main memory and provides three levels of throughputs: 1x (266Mbps), 2x
(533Mbps) and 4x (1.07Gbps).
PCI Slots
Three PCI slots allow you to insert the expansion cards to meet your needs.
When adding or removing expansion cards, make sure that you unplug the
power supply first. Meanwhile, read the documentation for the expansion card
to make any necessary hardware or software settings for the expansion card,
such as jumpers, switches or BIOS configuration.
CNR (Communication Network Riser) Slot
The Communication Network Riser specification is an open industry-standard
specification that defines a hardware scalable Original Equipment Manufac-
turer (OEM) mainboard riser board and interface, which supports
audio and modem only.

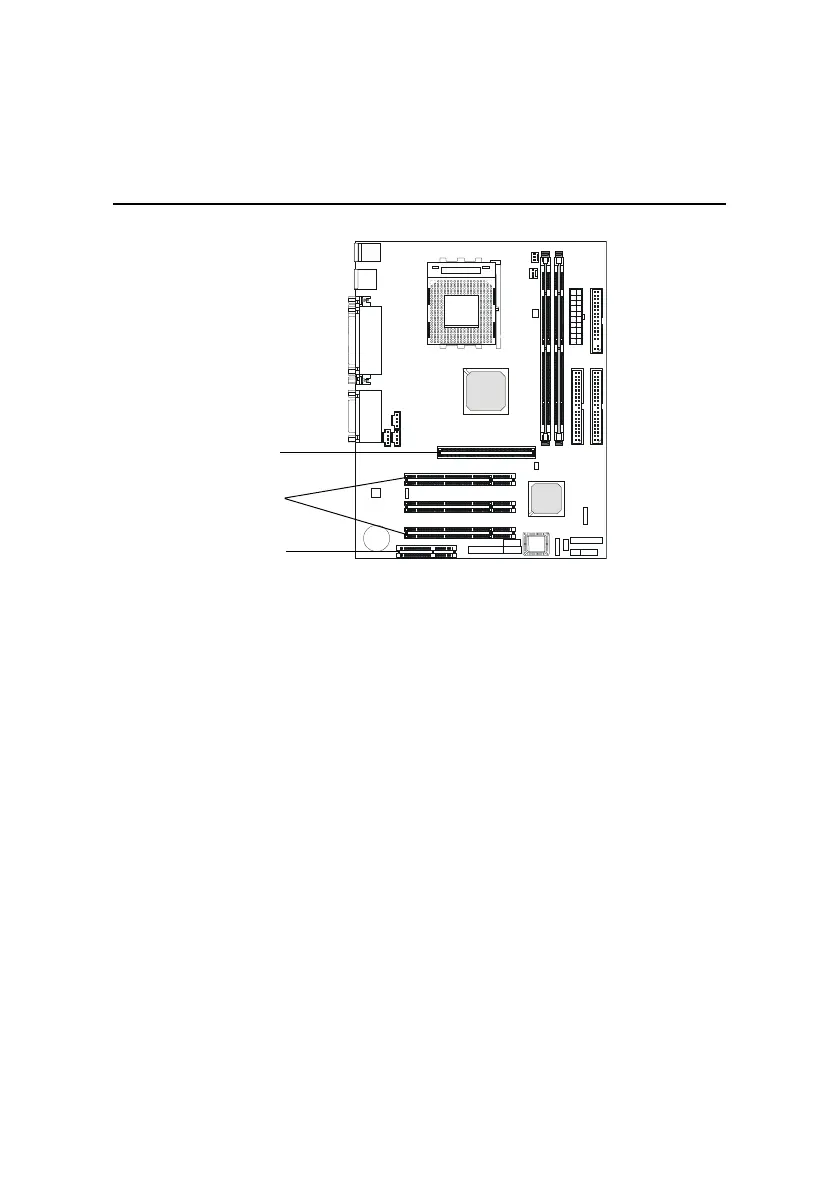

CNR Slot
AGP Slot
PCI Slots
