Model 380 Two Stage Snow Thrower
10
17. DIRECTIONAL DISCHARGE CHUTE ASSEM-
BLY REMOVAL.
17.1. Turn the discharge chute until it faces to the
right. See Figure 17.1.
17.2. Using a screwdriver, pry the clasp on the chute
assembly collar to release the clasp. See Figure
17.2.
17.3. Pry the lower inner clasp to release the collar.
See Figure 17.3.
17.4. Remove the collar.
17.5. Lift off the discharge chute
NOTE: During assembly make sure to position
the collar into the detent spring. Take time to fit
upper and lower flanges on the collar around the
chute flanges. This will fit without forcing.
18. REMOVAL OF THE AUGER IDLER BRACKET
18.1. Remove the belts as described in Section 4.
18.2. Remove the wheels as described in Section 7.
18.3. Remove the transmission as described in Sec-
tion 9.

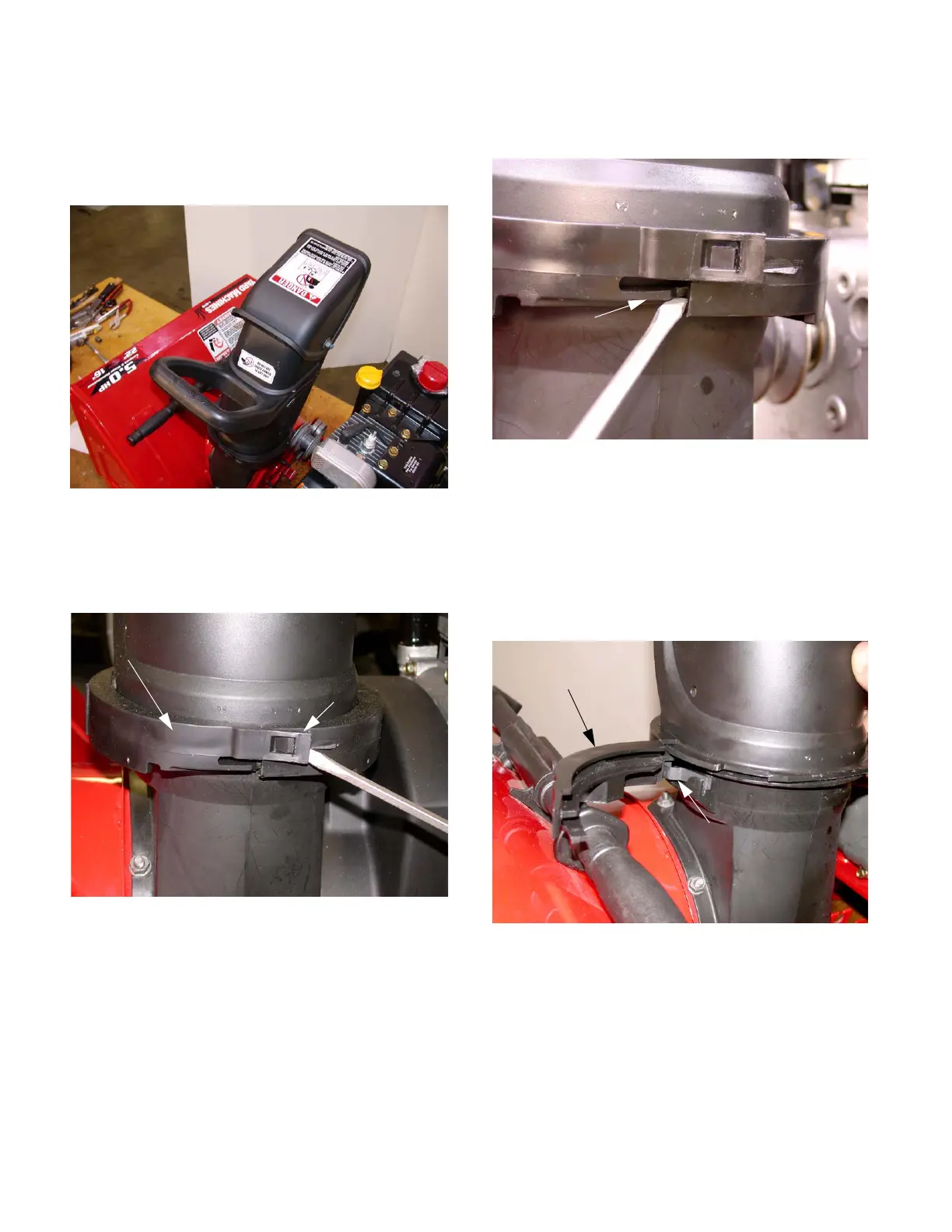

Figure 17.1
Discharge chute facing right
Figure 17.2
Chute Collar
Clasp
Figure 17.3
Lower Clasp
Assembly Detail
Chute Collar
Detent Spring
To Next Page
