6. Check valve lash between each valve stem and
rocker arm using a feeler gauge.
7. Intake valve lash (top valve) should be 0.004” -
0.006” (0.10 - 0.15mm).
See Figure 1.12.
8. Exhaust valve lash (bottom valve) should be 0.006” -
0.008” (0.15 - 0.20mm).
See Figure 1.13.
9. Use a 10mm wrench to loosen the jam nut, and a
14mm wrench to adjust the rocker arm fulcrum nut.
See Figure 1.13.
• Tighten the rocker arm fulcrum nut to close-up the
clearance between the end of the valve stem and
the contact point on the rocker arm.
• Loosen the rocker arm fulcrum nut to open-up the
clearance between the end of the valve stem and
the contact point on the rocker arm.
10. Hold the fulcrum nut with a 14mm wrench, tighten the
jam nut to a torque of 80 - 106 in-lb. (9 - 12 Nm) using
a 10mm wrench.
11. Double-check the clearance after tightening the jam nut, to confirm that it did not shift. Re-adjust if necessary.
12. Rotate the engine through several compression cycles:
• Observe the movement of the valve gear.
• Return the piston to TDC compression stroke and re-check the valve lash to confirm consistent movement
of the valve gear, including the slight bump to the exhaust valve from the automatic compression release.
13. Clean-up any oil around the valve cover opening, clean the valve cover, replace the valve cover gasket if nec-
essary.
14. Install the valve cover, tightening the valve cover screws to a torque of 62 - 80 in-lbs (7 - 9 Nm).
IMPORTANT: Over tightening the valve cover will cause it to leak.
15. Install the spark plug.
16. Test run the engine before returning it to service.

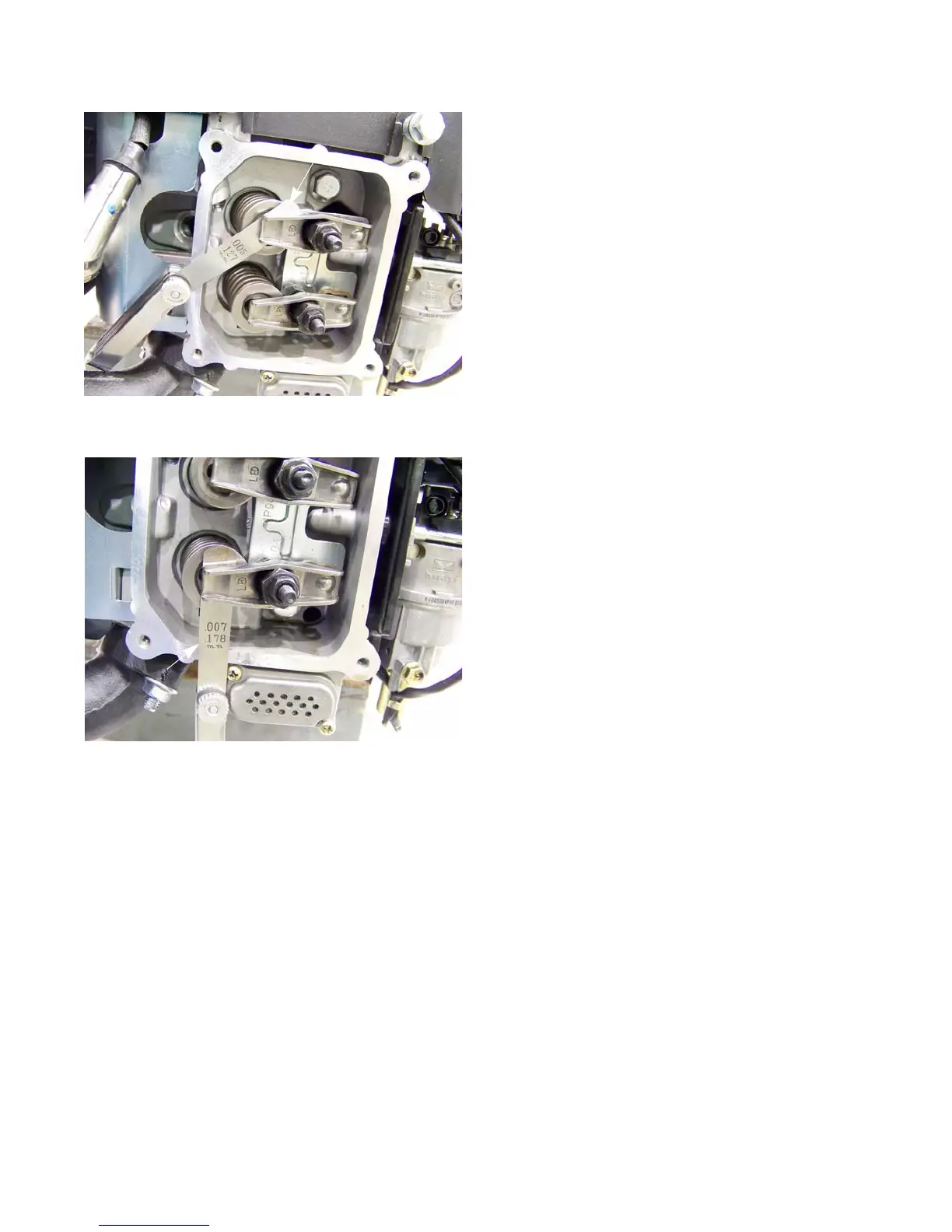

Figure 1.12
