AIR INTAKE SYSTEM
29
Blower/air filter housing
On the P90 series of engine, the air filter housing is part
of the blower housing.
To remove/replace the blower/air filter housing:
1. Remove the air filter following the steps described in
the previous section of this chapter.
2. Remove the nut that was under the air filter (indicated
by the arrow in
Figure 3.5.) using a 10mm wrench.
3. Loosen the two shoulder bolts (indicated by the
arrows in
Figure 3.6.) using a 12 mm wrench.
4. Remove the three acorn nuts (indicated by the
arrows in
Figure 3.7.) using a 10 mm wrench.
5. Lift the blower/air filter housing off of the engine.
6. Install the blower/air filter housing by following the
previous steps in reverse order.
NOTE: tighten the blower/air filter housing nuts to a torque
of 80 - 106 in lbs (9 - 12 Nm).
7. Test run the engine before returning it to service.

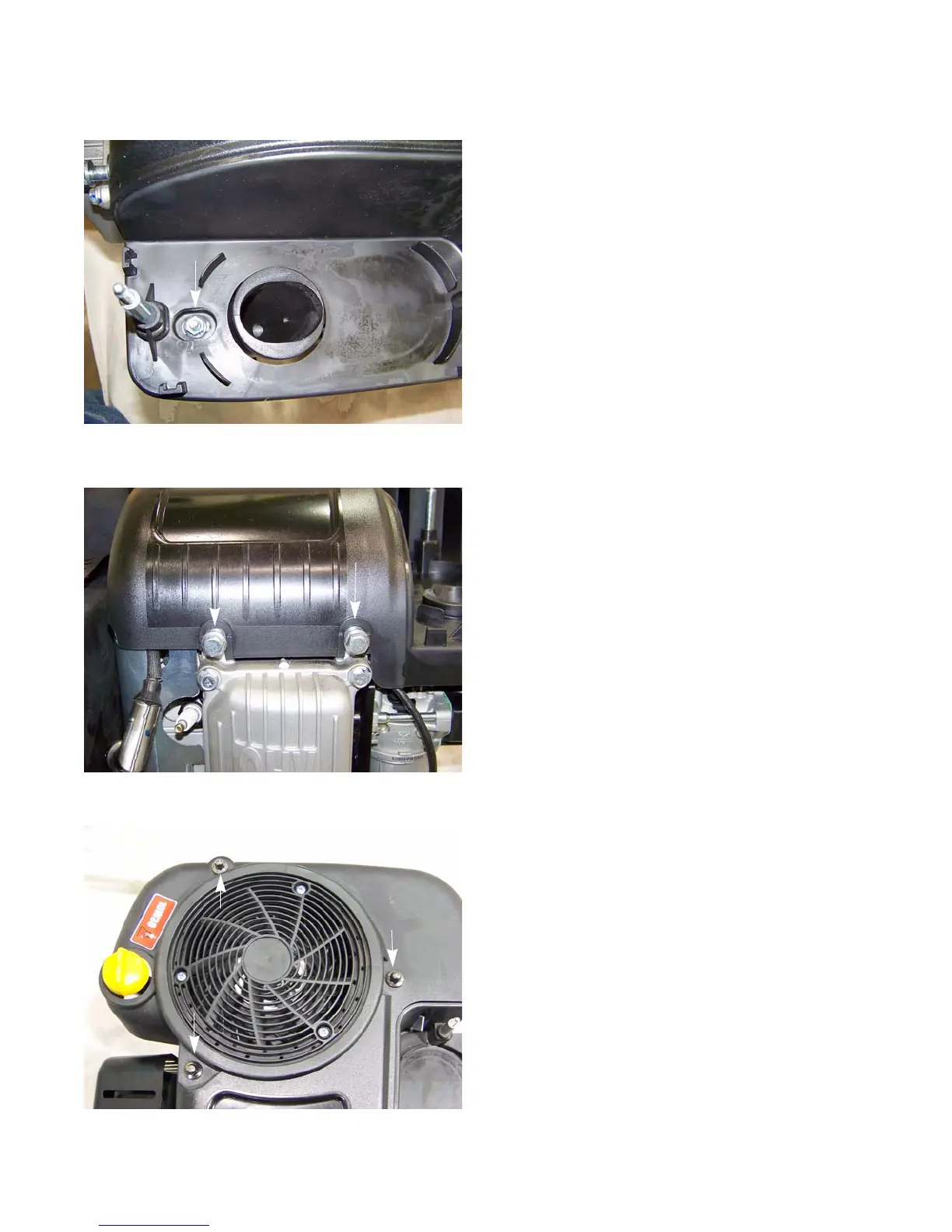

Figure 3.5
