P90 Series Vertical Shaft Engines
86
Cylinder head installation
1. Place a new head gasket on the cylinder, allowing
the alignment dowels to hold it in place.
See Figure 9.7.
NOTE: The 4P90 series of engines use a metal
head gasket with rubber seals.
2. Position the cylinder head on the engine block.
3. Install the 4 head bolts, and tighten them to a step
torque of 41 - 44 ft lbs. (55 - 60 Nm) in an alternating
diagonal pattern.
See Figure 9.8.
NOTE: The bolt closest to the exhaust valve must
be the last bolt tightened. Failure to do so
can result in the head bolt loosening up.
NOTE: The head bolts have a self locking thread
form.
4. Insert the push rods.
5. Install the rocker arms.
6. Adjust the valve lash by following the steps
described in Chapter 1: Introduction.
7. Install the baffle.
8. Install the muffler by following the steps described in Chapter 8: Exhaust.
9. Install the carburetor and engine shroud, using new gaskets, by following the steps described in Chapter 3: Air
Intake
10. Test run the equipment in a safe area before returning it to service. Check all safety features.

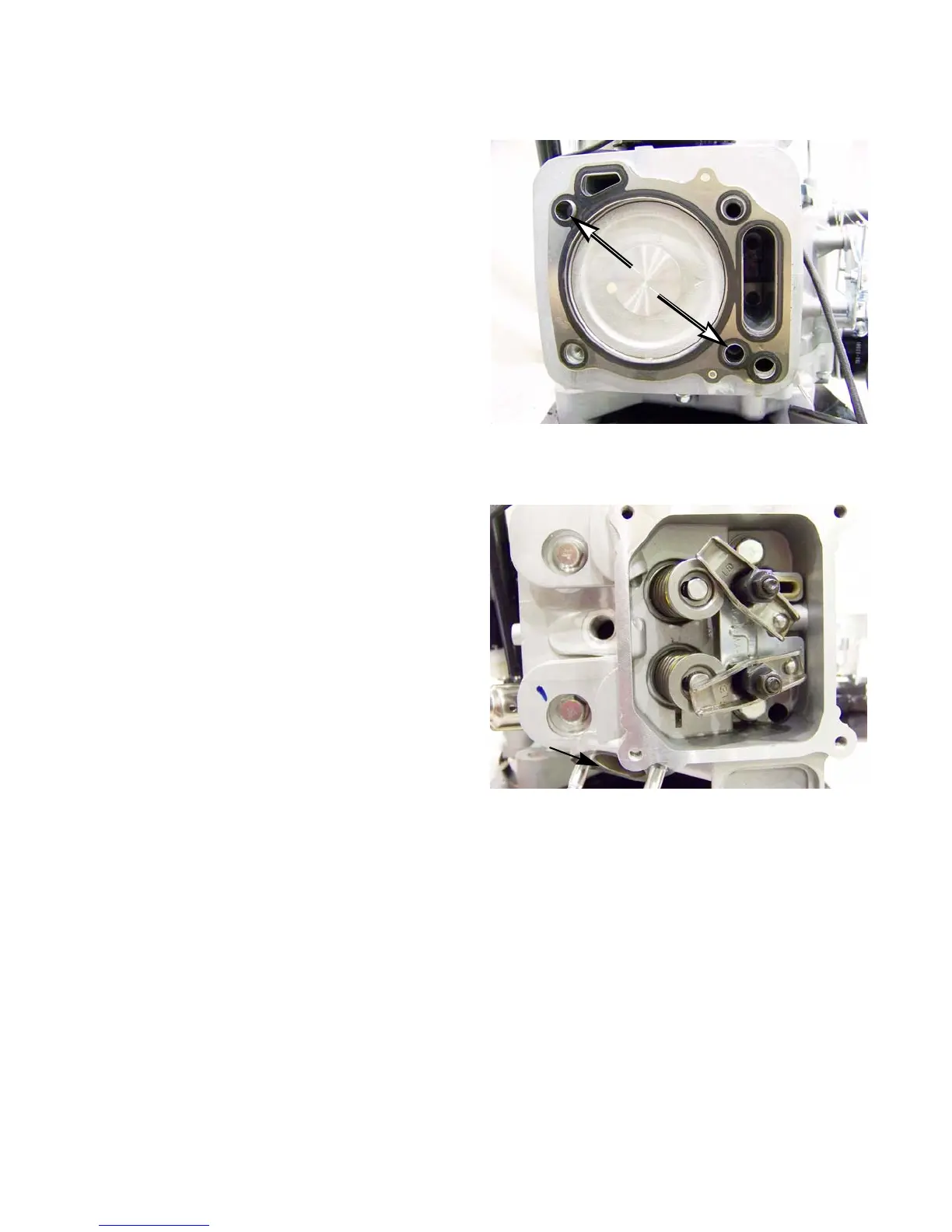

Figure 9.7
Dowel pins
Figure 9.8
Exhaust
port
2
3
4
1
