Ignition System
75
Module removal
1. Unplug the spark plug.
2. Remove the blower/air filter housing by following the
steps procedures in Chapter 3: Air Intake System.
3. Disconnect the module wire that goes to the system
harness.
See Figure 7.3.
4. Remove the module using a 10 mm wrench.
NOTE: The engine model number is on the module. When
installing a new module, make sure the model
numbers match.
See Figure 7.4.

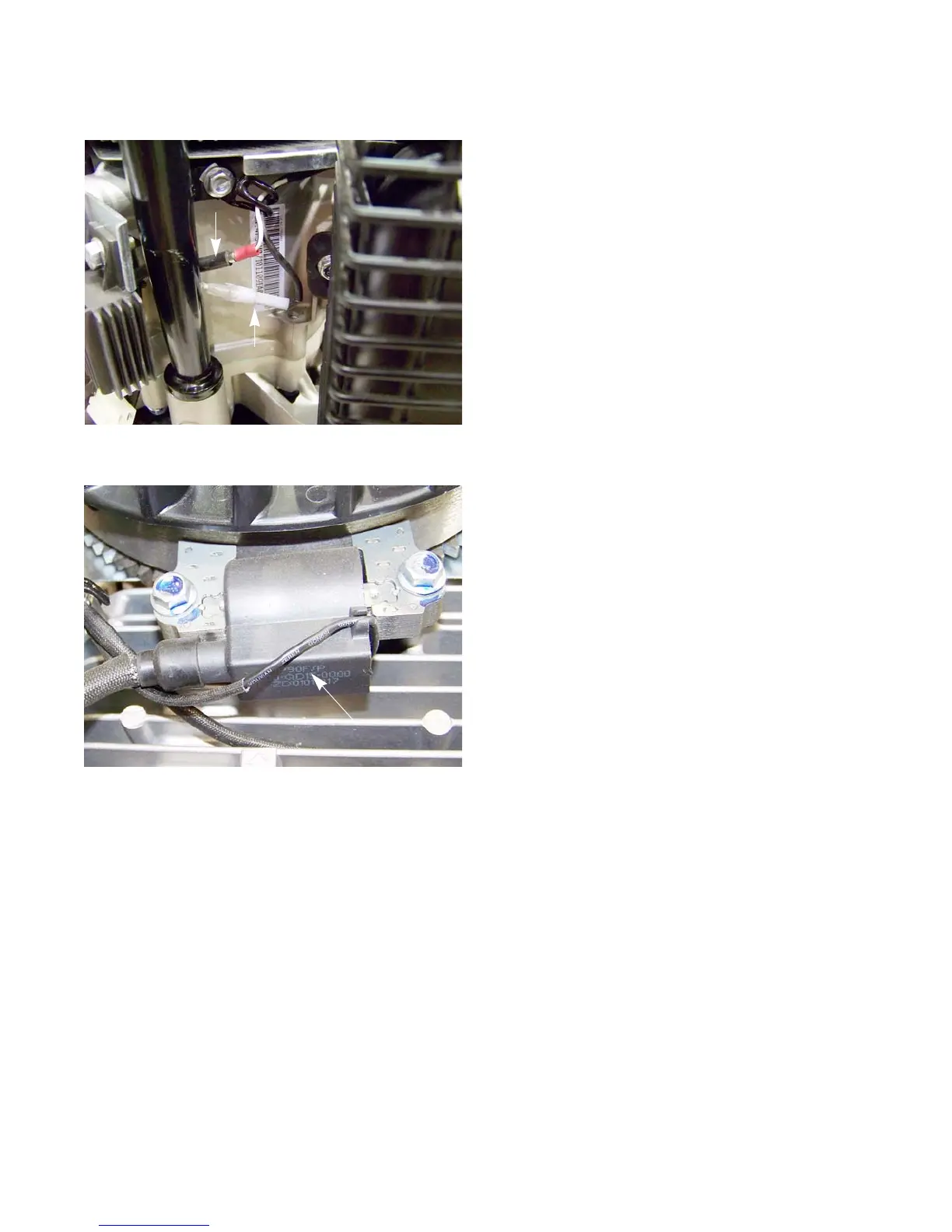

Figure 7.3
Module wire
Afterfire solenoid lead
Figure 7.4
Engine model number
