11. Install the carburetor by following the previous steps
in reverse order.
NOTE: Use new gaskets between the cylinder
head, the insulator, the carburetor and the
intake manifold.
NOTE: Tighten the carburetor nuts to a torque of 62
- 80 in lbs (7 - 9 Nm).
12. Test run the engine before returning it to service.

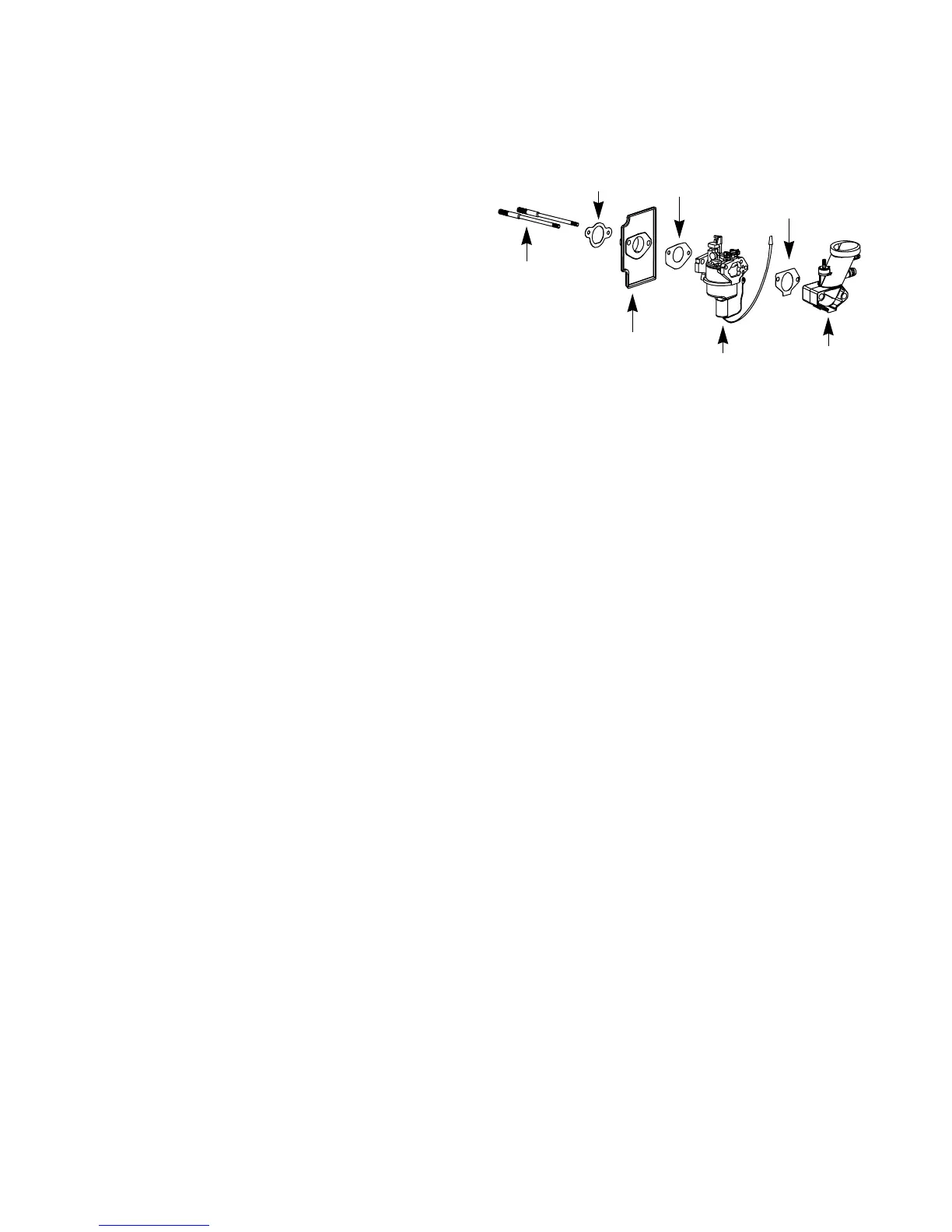

Figure 3.13
Studs
Gasket
Insulator
Gasket
Carburetor
Gasket
Manifold
