2. Temposonics II LDT Installation
Before beginning installation, be sure you know the following dimensions (as illustrated in Figures 2-1 to 2-3a-c.):
• Null Space
• Stroke
• Dead Zone

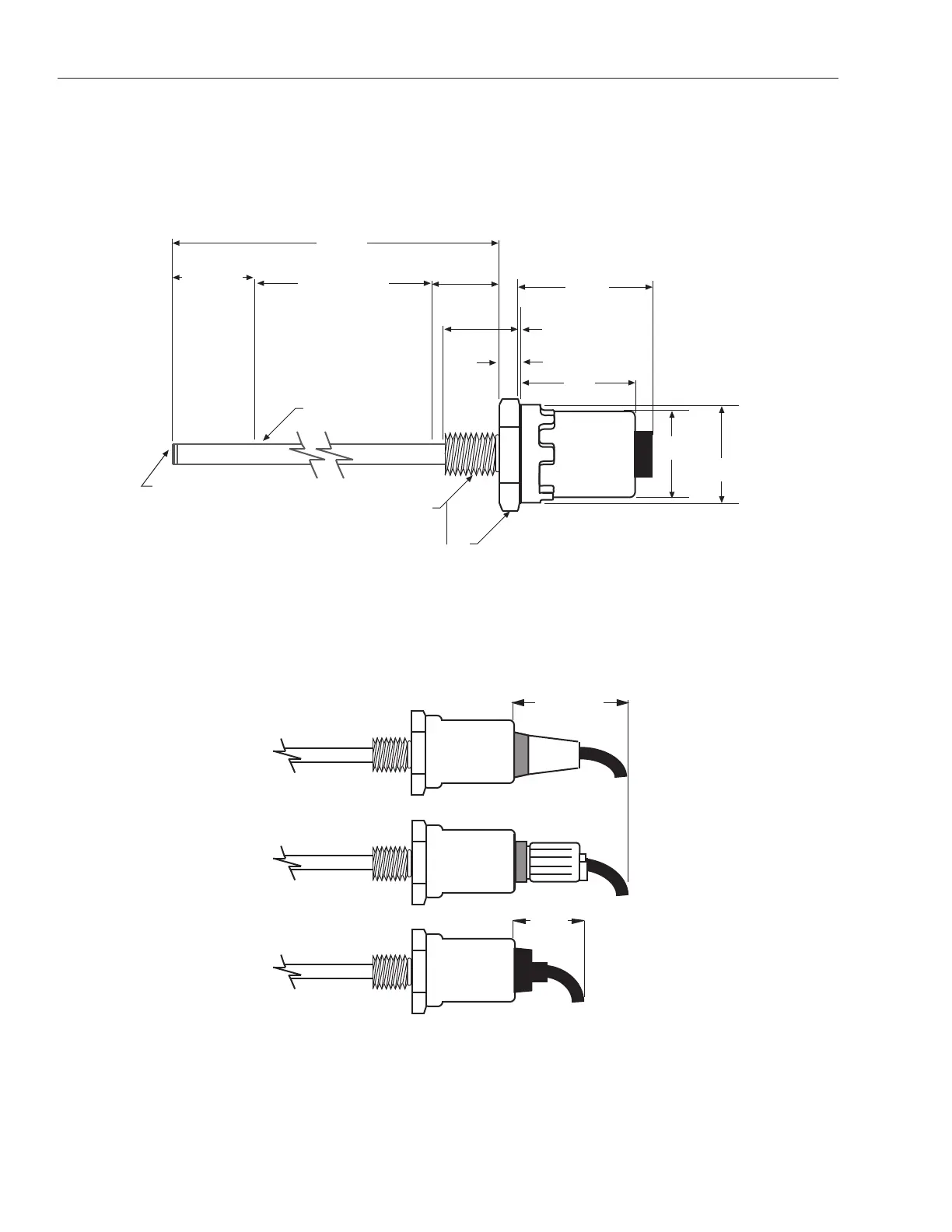

Figure 2-1
Temposonics II Dimension
Figure 2-2
Temposonics II Connector/Cable Clearance Requirements
Temposonics II with
Molded Connector/Cable Assembly
Temposonics II with
Field Instalable Connector
Temposonics II with
Integral Cable
2.5 in. minimum
(clearance for connector
and cable bend)
1.25 in.
minimum
3/4-16 UNF-3A Thread
0.38 in. DIA
(9.65 mm)
Standard Null
(2.0 in., 50 mm)
0.38 in. (9.65 mm)
1.36 in.
(34.54 mm)
End Plug,
Flush 0.83 in.
(9.65 mm)
0.03 in. (0.76 mm)
Hex
1.75 in. (44.45 mm) across flats
2.13 in.
(54 mm)
Flange to Tip
Stroke Length
(specified by customer)
1.57 in. dia.
(39.87 mm)
1.75 in. dia.
(44.45 mm)
2.50 in.
(63.50 mm)
Dead Zone
2.50 in.
(63.50 mm)
for stroke
lengths up to
179.9 in;
3 in. (76.2 mm)
for strokes
≥180 in.
