General warning Indication (red) that a warning is active or an error
has been detected. If grey, no errors in system.
Driving OK Indicates whether driving the truck is OK or not.
Green = middle frame down, hook arm front and
locks closed.
Red Grey
Green Red
View modes

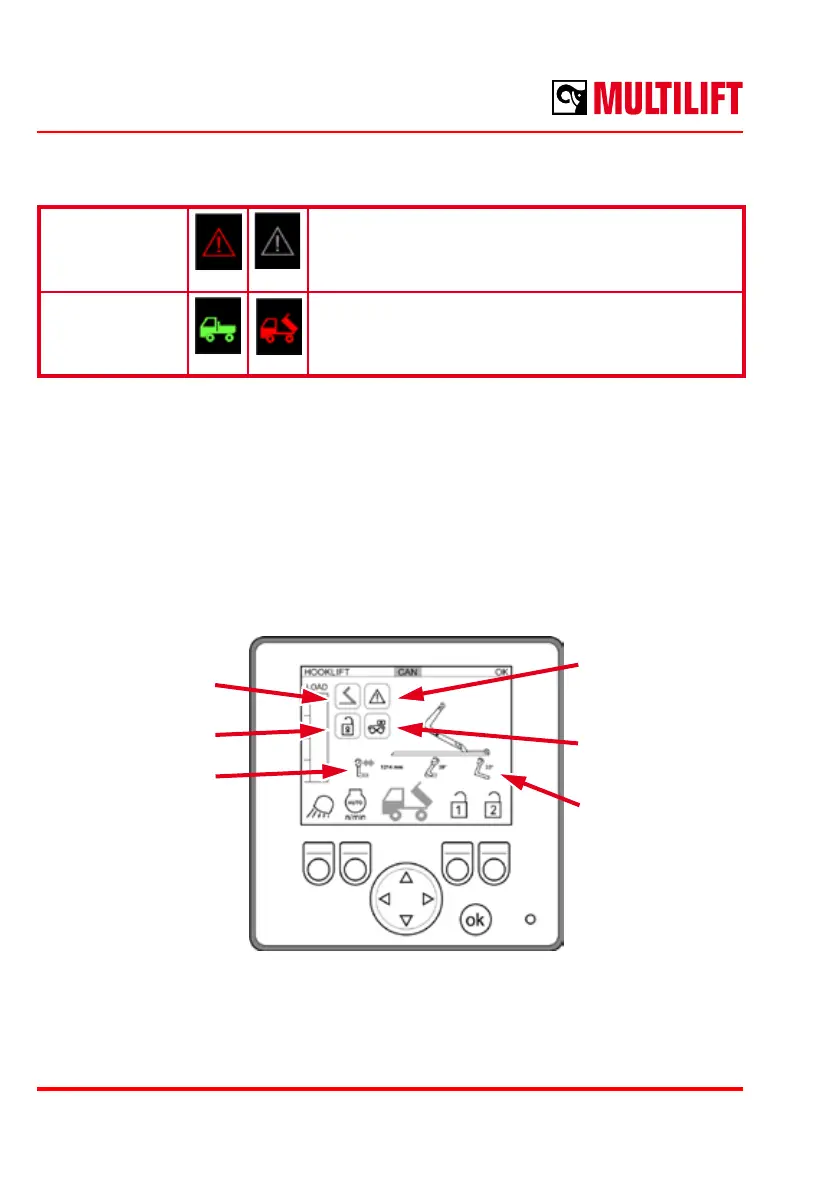

Hooklift view mode
In this mode, the most important hooklift status is clearly visible. The hooklift position is
illustrated by a graphical representation of a hooklift, which moves to reect the actual
hooklift position.
Locks
open / closed
Hooklift
up / down
Slide position
(mm)
Tilting angle
in degrees
(Ultima Z / ZL)
Hooklift error
Bogie blocking
ON/OFF
Tipping angle
in degrees
Load level indication bar graph is visible on the left hand side of the screen (LOAD). It
shows a raw estimate of the available load capacity with current load.
