MULTILIFT Ultima S Flex - Radio controller (2 GRC)

121
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
Service Manual
1 2
21
16
20
15
3 4
5 6
7 8
9 10
11 12
13 14
22
19
23
17
18
MULTILIFT
TARRAPAINATUKSET
punainen cmyk 0 100 100 0
musta cmyk 0 0 0 100
vaalea harmaa cmyk 1 0 0 7
tumma harmaa cmyk 5 0 0 25
PTO
on off

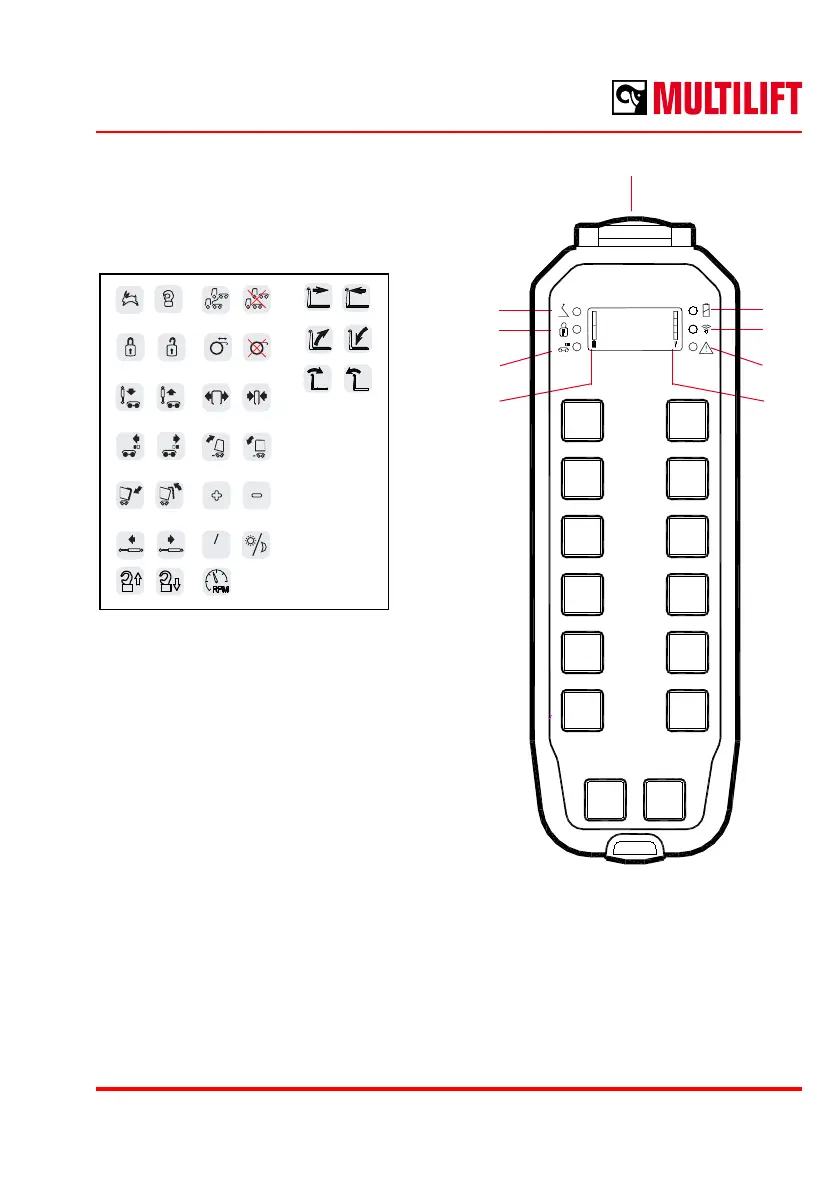

Radio controller (2GRC)
1 - 14 Function buttons
15 ON / OFF and
EMERGENCY STOP SWITCH
16 LED: BATTERY CHARGE STATUS (On = battery charge low)
17 LED: CONNECTION (Blinking = no connection)
18 LED: EXTRA EQUIPMENT
19 DISPLAY: CONNECTION
20 LED: FRAME NOT LOWERED
21 LED: HYDRAULIC CONTAINER LOCKS NOT LOCKED
22 LED: UNDER-RUN BAR RETRACTED
23 DISPLAY: BATTERY CHARGE STATUS
Symbol sticker sheet
Note!
One sticker sheet is meant to
be used in case of changes
implemented later.
