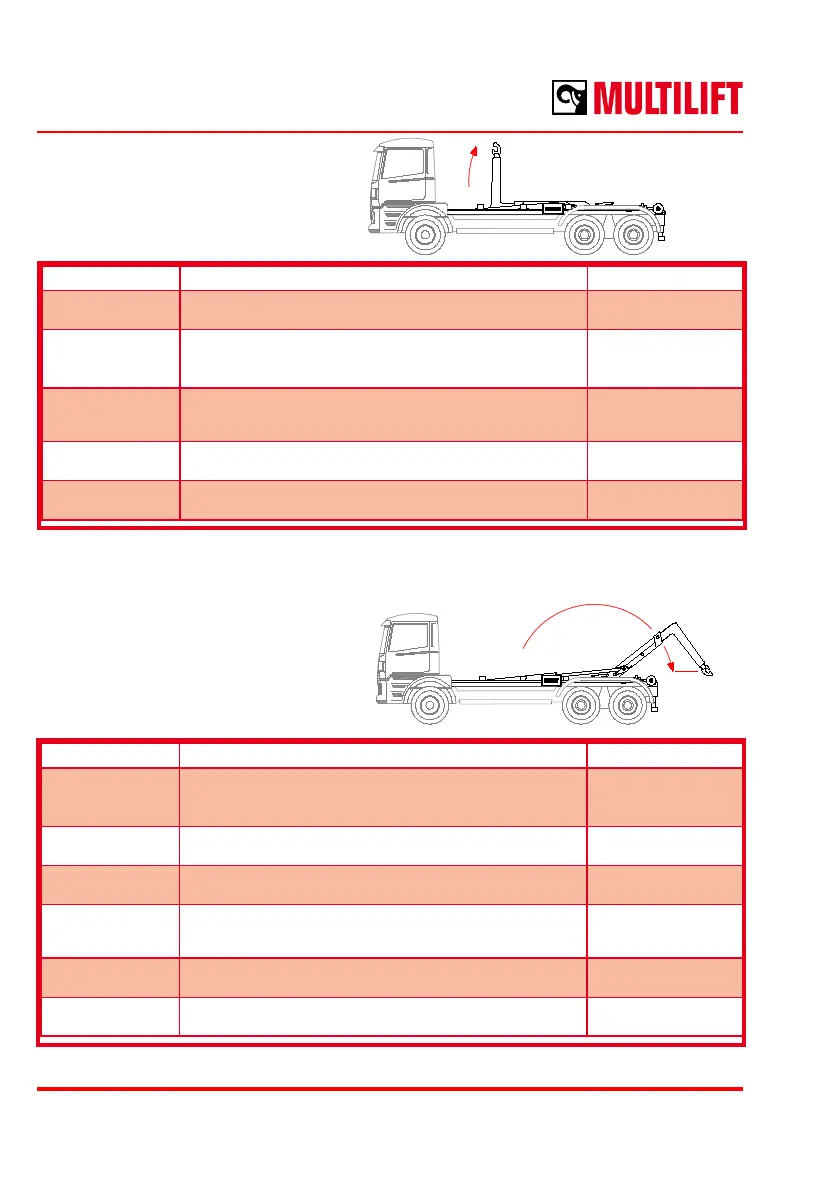

Possible safety codes in the
display when moving the main
cylinders out
Possible safety codes in the
display when moving the main
cylinders out
(middle frame up)
SAFETY CODE DESCRIPTION NOTE
C007, d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS NOT
MOVING OUT.
C009, d003,
d015
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE BOTH ACTIVE.
CHECK WHY SENSOR 317 IS ACTIVE.
MAIN CYLINDERS ARE
MOVING OUT.
d003, d015
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE NOT ACTIVE.
CHECK WHY SENSOR 316 IS NOT ACTIVE.
MAIN CYLINDERS NOT
MOVING OUT.
d021
URB OUT SENSOR (323) IS ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS NOT
MOVING OUT.
d022
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE NOT
ACTIVE. CHECK SENSOR 322 AND CABLE.
MAIN CYLINDERS NOT
MOVING OUT.
SAFETY CODE DESCRIPTION NOTE
C009, d003,
d015
BODY LOCKS CLOSED SENSOR (317) IS ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS ARE
MOVING OUT.
d003, d015
BODY LOCKS OPEN SENSOR (316) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS ARE
MOVING OUT.
d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS NOT
MOVING OUT.
d021
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE BOTH
ACTIVE.
CHECK WHY SENSOR 323 IS ACTIVE.
MAIN CYLINDERS ARE
MOVING OUT.
d021
URB OUT SENSOR (323) IS ACTIVE.
OPERATE URB IN.
MAIN CYLINDERS NOT
MOVING OUT.
d022
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE NOT
ACTIVE. CHECK SENSOR 322 AND CABLE.
MAIN CYLINDERS NOT
MOVING OUT.
