MULTILIFT Ultima S Flex - Page 54

54
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
P

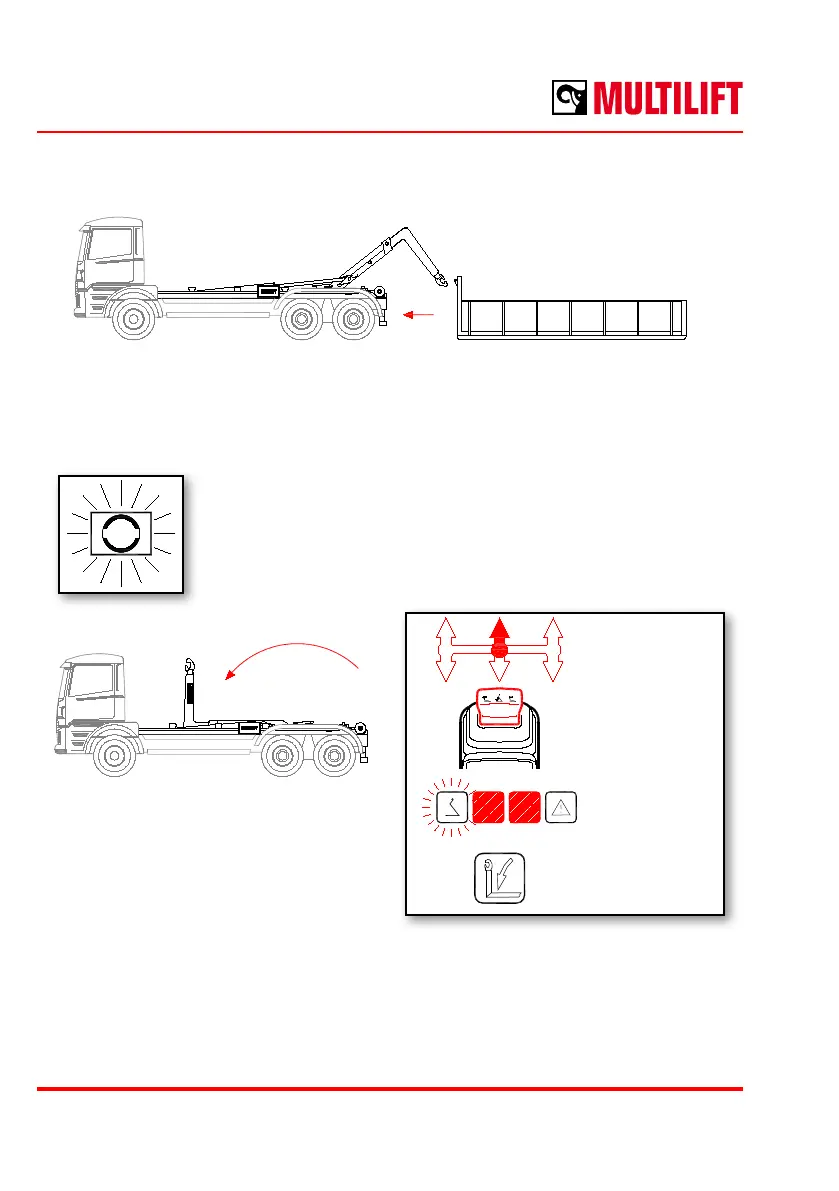

13. Engage the parking brake.
11. Stop the movement by releasing the lever or the button.
12. Lower the middle frame even lower.
Drive the truck forward so that the hook will be o󰀨 the container gripping bar.
14. Move the hook arm / middle frame
to forward position
- move the CONTROL LEVER forwards (2GCC) or
- press MAIN CYLINDERS FORWARD button (2GMR and 2GRC), until the
frame is completely on the subframe
- the indicator light FRAME NOT DOWN goes o󰀨 as the middle frame is
lowering onto the subframe.
The control
lever is in
forward
position
Third LED
goes out
Button
